Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.25 Inch Height

Ask A Question

Description & Features

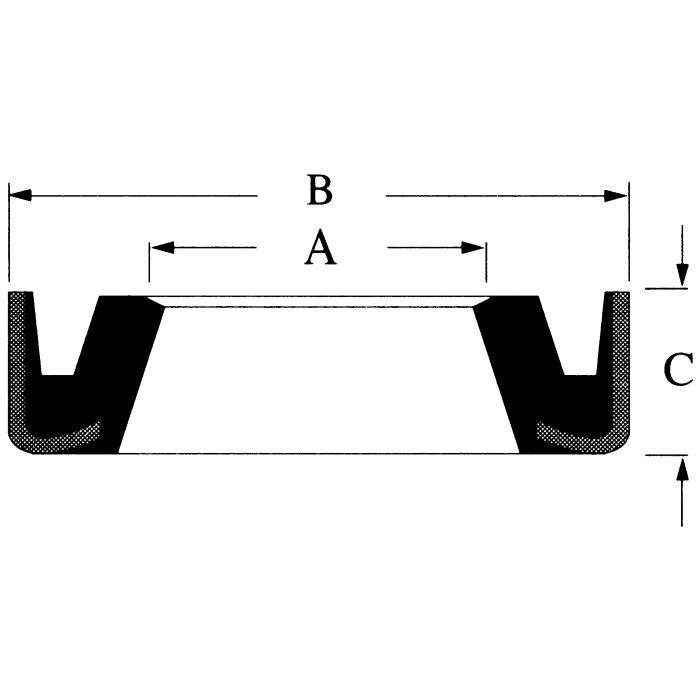

This Hercules Sealing Products metal-clad rubber wiper ring is designed to provide effective rod wiping in hydraulic applications. Constructed with a rubber material suitable for temperatures ranging from -40°F to 240°F, this wiper ring ensures reliable performance in demanding conditions. It has a rod diameter of 1.50 inches and a wiper OD of 1.88 inches, with a height (C) of 0.25 inches.

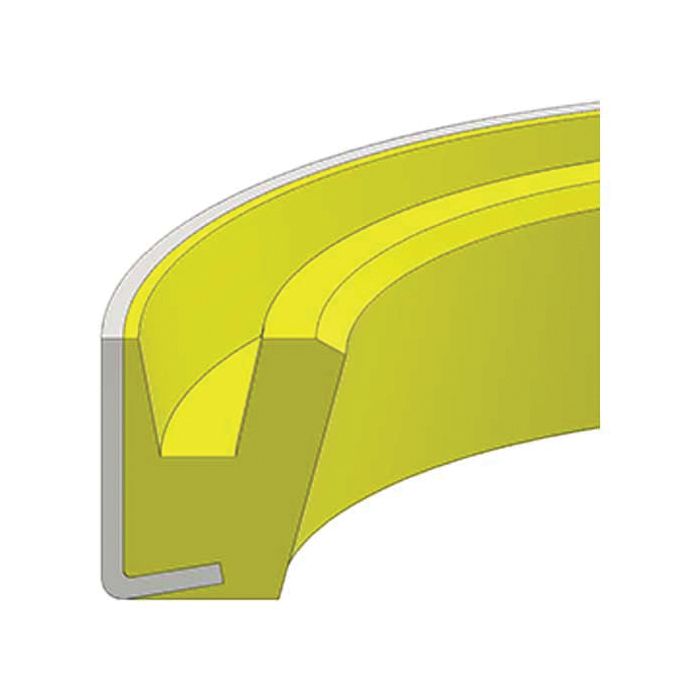

The metal-clad design enhances the durability and stability of the wiper, offering robust protection against contaminants. This metal-clad rubber wiper ring is identified by catalog number C1DD87.

SKU: MCN-1502

Supplier Part Number (MPN): MCN-1502

Alternate Part Numbers: C1DD87, MI-00942958, MINO-00407X15112

Specifications

C
0.25
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Rod Diameter A
1.50
Supplier Part Number
MCN-1502
Product Weight
0.03 lbs
Alternate Part Numbers
Alternate Part Number C1DD87, Alternate Part Number MI-00942958, Alternate Part Number MINO-00407X15112

Similar Products

Model Number Rod Diameter A Wiper O.D. B C Price Action
Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.13 Inch Height

MCN-1001 Metal-Clad Rubber Wiper Ring

1

1.25

0.125

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.38 Inch Wiper OD, 0.19 Inch Height

MCN-1003 Metal-Clad Rubber Wiper Ring

1

1.375

0.1875

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.50 Inch Wiper OD, 0.19 Inch Height

MCN-1005 Metal-Clad Rubber Wiper Ring

1

1.5

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.69 Inch Wiper OD, 0.19 Inch Height

MCN-1253 Metal-Clad Rubber Wiper Ring

1.25

1.688

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.25 Inch Height

MCN-1254 Metal-Clad Rubber Wiper Ring

1.25

1.75

0.25

Metal-Clad Rubber Wiper Ring, 1.38 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.19 Inch Height

MCN-1375 Metal-Clad Rubber Wiper Ring

1.375

1.75

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.25 Inch Height

MCN-1502 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.25

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.19 Inch Height

MCN-1503 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 2.00 Inch Wiper OD, 0.25 Inch Height

MCN-1504 Metal-Clad Rubber Wiper Ring

1.5

2

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.13 Inch Wiper OD, 0.19 Inch Height

MCN-1753 Metal-Clad Rubber Wiper Ring

1.75

2.125

0.1875

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.25 Inch Wiper OD, 0.25 Inch Height

MCN-1754 Metal-Clad Rubber Wiper Ring

1.75

2.25

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.25 Inch Height

MCN-1755 Metal-Clad Rubber Wiper Ring

1.75

2.375

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.19 Inch Height

MCN-2001 Metal-Clad Rubber Wiper Ring

2

2.375

0.1875

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.63 Inch Wiper OD, 0.25 Inch Height

MCN-2002 Metal-Clad Rubber Wiper Ring

2

2.625

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.50 Inch Wiper OD, 0.25 Inch Height

MCN-2003 Metal-Clad Rubber Wiper Ring

2

2.5

0.25

Metal-Clad Rubber Wiper Ring, 2.25 Inch Rod Diameter, 2.75 Inch Wiper OD, 0.25 Inch Height

MCN-2253 Metal-Clad Rubber Wiper Ring

2.25

2.75

0.25

Metal-Clad Rubber Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.25 Inch Height

MCN-2501 Metal-Clad Rubber Wiper Ring

2.5

3

0.25

Metal-Clad Rubber Wiper Ring, 3.00 Inch Rod Diameter, 3.50 Inch Wiper OD, 0.25 Inch Height

MCN-3001 Metal-Clad Rubber Wiper Ring

3

3.5

0.25

Product Questions & Answers (2)

Question by: Dean W on Jan 11, 2026, 9:14 PM
Got a cylinder rod that measures 1.50 inches across, will this wiper ring fit up right, and what's the outside diameter on it?
Answer by: Customer Support on Jan 13, 2026, 6:30 AM
For a 1.50-inch rod, this is the correct size. The wiper OD comes out to 1.875 inches, and the height runs 0.25 inches. Those three dimensions together are what you need to confirm a proper fit in your housing bore before you order.
Question by: Cody H on Aug 14, 2025, 8:47 AM
got a 1.5 inch rod, is this the right wiper size or am i gonna be fightin it?
Answer by: Customer Support on Aug 15, 2025, 12:31 PM
The key numbers are a 1.50 inch rod diameter and a 1.88 inch wiper OD, with a 0.25 inch height. If your cylinder uses a wiper with those dimensions, this metal-clad rubber ring matches that size.
