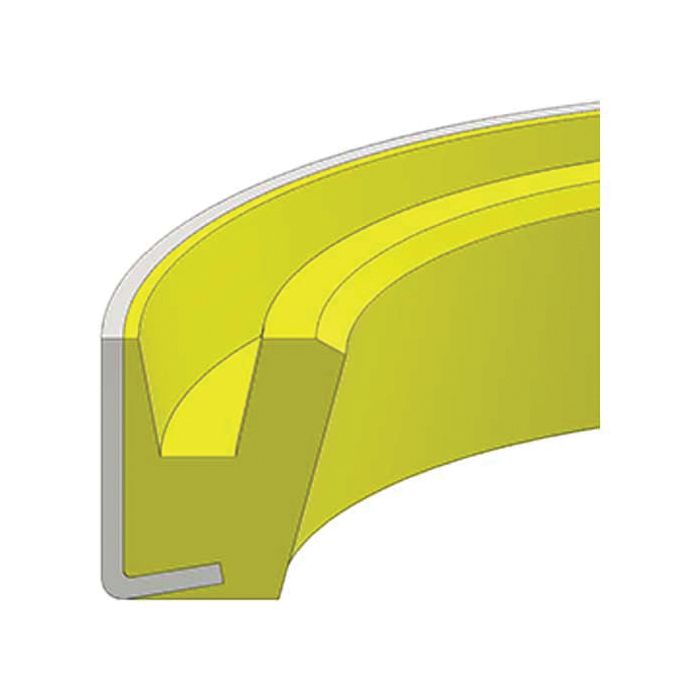

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.63 Inch Wiper OD, 0.25 Inch Height

Description & Features

This Hercules Sealing Products metal-clad rubber wiper ring is designed to provide effective rod wiping in hydraulic applications.

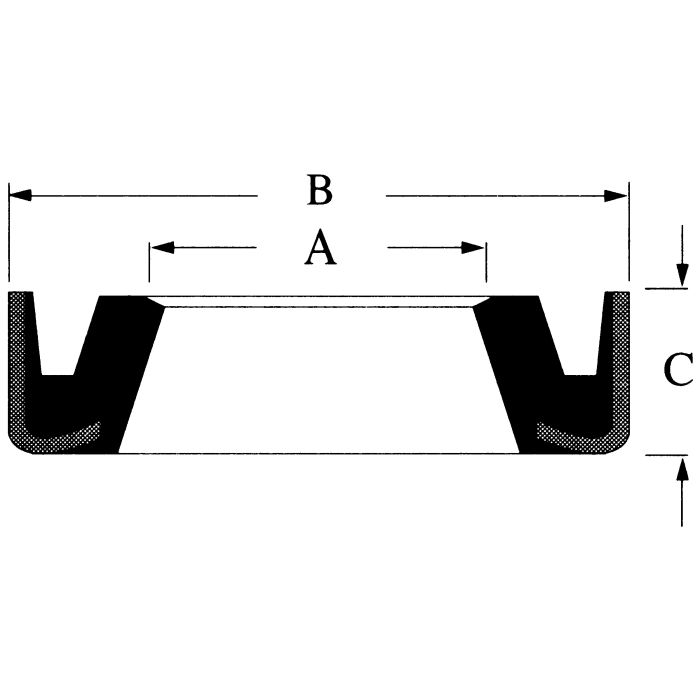

The metal-clad rubber wiper ring has a 2.00 inch rod diameter, a 2.63 inch wiper OD, and a 0.25 inch height. Its rubber construction allows for reliable performance within a temperature range of -40°F to 240°F.

SKU: MCN-2002

Supplier Part Number (MPN): MCN-2002

Alternate Part Numbers: C1DD95, MI-00943053, MINO-00407X15128

Specifications

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 2	Supplier Part Number MCN-2002	Product Weight 0.05 lbs	Alternate Part Numbers Alternate Part Number C1DD95, Alternate Part Number MI-00943053, Alternate Part Number MINO-00407X15128

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001 Metal-Clad Rubber Wiper Ring	1	1.25	0.125
MCN-1003 Metal-Clad Rubber Wiper Ring	1	1.375	0.1875
MCN-1005 Metal-Clad Rubber Wiper Ring	1	1.5	0.1875
MCN-1253 Metal-Clad Rubber Wiper Ring	1.25	1.688	0.1875
MCN-1254 Metal-Clad Rubber Wiper Ring	1.25	1.75	0.25
MCN-1375 Metal-Clad Rubber Wiper Ring	1.375	1.75	0.1875
MCN-1502 Metal-Clad Rubber Wiper Ring	1.5	1.875	0.25
MCN-1503 Metal-Clad Rubber Wiper Ring	1.5	1.875	0.1875
MCN-1504 Metal-Clad Rubber Wiper Ring	1.5	2	0.25
MCN-1753 Metal-Clad Rubber Wiper Ring	1.75	2.125	0.1875
MCN-1754 Metal-Clad Rubber Wiper Ring	1.75	2.25	0.25
MCN-1755 Metal-Clad Rubber Wiper Ring	1.75	2.375	0.25
MCN-2001 Metal-Clad Rubber Wiper Ring	2	2.375	0.1875
MCN-2003 Metal-Clad Rubber Wiper Ring	2	2.5	0.25
MCN-2253 Metal-Clad Rubber Wiper Ring	2.25	2.75	0.25
MCN-2501 Metal-Clad Rubber Wiper Ring	2.5	3	0.25
MCN-3001 Metal-Clad Rubber Wiper Ring	3	3.5	0.25

Product Questions & Answers (3)

Question by: Larry C on Aug 13, 2025, 9:09 AM

got a 2 inch rod, is this wiper ring the right size or am i missin somethin

Answer by: Customer Support on Aug 14, 2025, 6:22 PM

The key callouts are a 2.00 inch rod diameter, a 2.63 inch wiper OD (2.625), and a 0.25 inch height, so it matches a 2 inch rod application with that outside diameter and height.

Question by: Rex T on Dec 30, 2025, 7:26 PM

So, this is just the wiper part, right? Not the whole cylinder assembly?

Answer by: Customer Support on Jan 1, 2026, 7:16 AM

That's correct, this is just the metal-clad rubber wiper ring itself. It's designed to keep dirt and debris from getting into your hydraulic cylinders.

Question by: Gary B on Dec 1, 2025, 7:36 PM

Got a cylinder with a 2-inch rod that needs a new wiper, this the right size to drop in?

Answer by: Customer Support on Dec 3, 2025, 1:54 PM

For a 2.00 inch rod diameter, yeah, this one lines up. The wiper OD comes in at 2.625 inches and the height is 0.25 inches, so those are the numbers you want to match against your housing bore and groove depth before ordering. The rod diameter is the critical fit dimension here, and this one is spec'd right at 2.00 inches.
