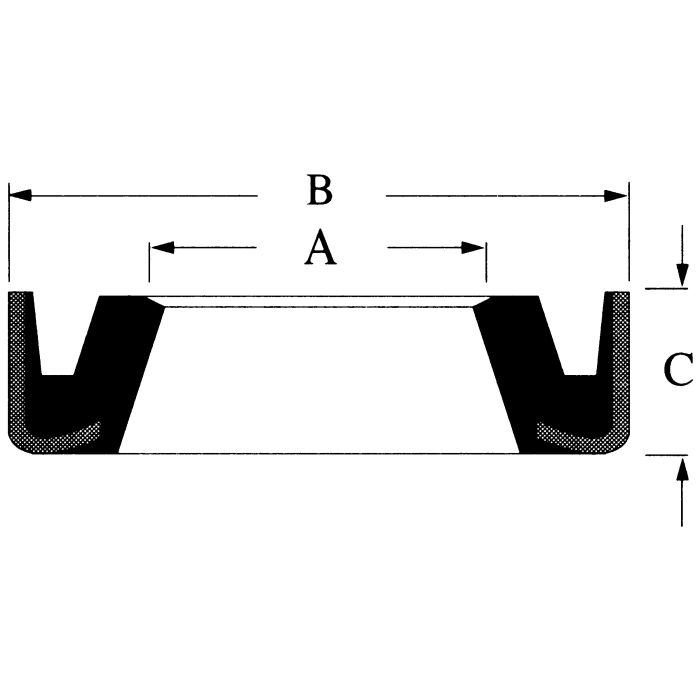

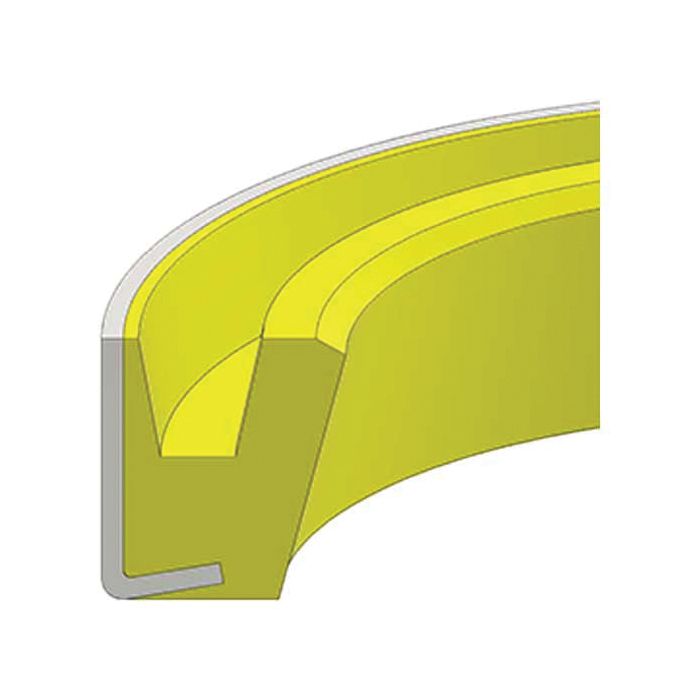

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.50 Inch Wiper OD, 0.25 Inch Height

Ask A Question

Description & Features

Designed to exclude contaminants from hydraulic cylinder rods, this Metal-Clad Rubber Wiper Ring from Hercules Sealing Products combines a rigid metal casing with a rubber wiping lip for reliable performance in demanding linear actuator applications. The metal cladding provides structural support and secure housing retention, while the rubber element maintains consistent contact with the rod surface during reciprocating motion.

Sized for a 2.00 inch rod diameter with a 2.50 inch OD and a 0.25 inch height, this wiper ring suits a range of standard hydraulic cylinder bore configurations. The rubber construction supports a temperature range of -40°F to 240°F, making it suitable for both cold-climate and elevated-temperature service environments.

SKU: MCN-2003

Supplier Part Number (MPN): MCN-2003

Alternate Part Numbers: C1DD96, MI-00943065, MINO-00407X15130

Specifications

C
0.25
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Rod Diameter A
2
Supplier Part Number
MCN-2003
Product Weight
0.04 lbs
Alternate Part Numbers
Alternate Part Number C1DD96, Alternate Part Number MI-00943065, Alternate Part Number MINO-00407X15130

Similar Products

Model Number Rod Diameter A Wiper O.D. B C Price Action
Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.13 Inch Height

MCN-1001 Metal-Clad Rubber Wiper Ring

1

1.25

0.125

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.38 Inch Wiper OD, 0.19 Inch Height

MCN-1003 Metal-Clad Rubber Wiper Ring

1

1.375

0.1875

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.50 Inch Wiper OD, 0.19 Inch Height

MCN-1005 Metal-Clad Rubber Wiper Ring

1

1.5

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.69 Inch Wiper OD, 0.19 Inch Height

MCN-1253 Metal-Clad Rubber Wiper Ring

1.25

1.688

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.25 Inch Height

MCN-1254 Metal-Clad Rubber Wiper Ring

1.25

1.75

0.25

Metal-Clad Rubber Wiper Ring, 1.38 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.19 Inch Height

MCN-1375 Metal-Clad Rubber Wiper Ring

1.375

1.75

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.25 Inch Height

MCN-1502 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.25

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.19 Inch Height

MCN-1503 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 2.00 Inch Wiper OD, 0.25 Inch Height

MCN-1504 Metal-Clad Rubber Wiper Ring

1.5

2

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.13 Inch Wiper OD, 0.19 Inch Height

MCN-1753 Metal-Clad Rubber Wiper Ring

1.75

2.125

0.1875

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.25 Inch Wiper OD, 0.25 Inch Height

MCN-1754 Metal-Clad Rubber Wiper Ring

1.75

2.25

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.25 Inch Height

MCN-1755 Metal-Clad Rubber Wiper Ring

1.75

2.375

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.19 Inch Height

MCN-2001 Metal-Clad Rubber Wiper Ring

2

2.375

0.1875

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.63 Inch Wiper OD, 0.25 Inch Height

MCN-2002 Metal-Clad Rubber Wiper Ring

2

2.625

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.50 Inch Wiper OD, 0.25 Inch Height

MCN-2003 Metal-Clad Rubber Wiper Ring

2

2.5

0.25

Metal-Clad Rubber Wiper Ring, 2.25 Inch Rod Diameter, 2.75 Inch Wiper OD, 0.25 Inch Height

MCN-2253 Metal-Clad Rubber Wiper Ring

2.25

2.75

0.25

Metal-Clad Rubber Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.25 Inch Height

MCN-2501 Metal-Clad Rubber Wiper Ring

2.5

3

0.25

Metal-Clad Rubber Wiper Ring, 3.00 Inch Rod Diameter, 3.50 Inch Wiper OD, 0.25 Inch Height

MCN-3001 Metal-Clad Rubber Wiper Ring

3

3.5

0.25

Product Questions & Answers (1)

Question by: Bobby W on Dec 23, 2025, 1:50 PM
What size rod does this wiper ring fit? Just wanna make sure it's the right one before I order.
Answer by: Customer Support on Dec 25, 2025, 6:09 AM
It's made to fit a rod with a 2.00 inch diameter. The outside diameter of the wiper itself is 2.50 inches, and it's 0.25 inches tall.
