Metal-Clad Rubber Wiper Ring, 2.25 Inch Rod Diameter, 2.75 Inch Wiper OD, 0.25 Inch Height

Ask A Question

Description & Features

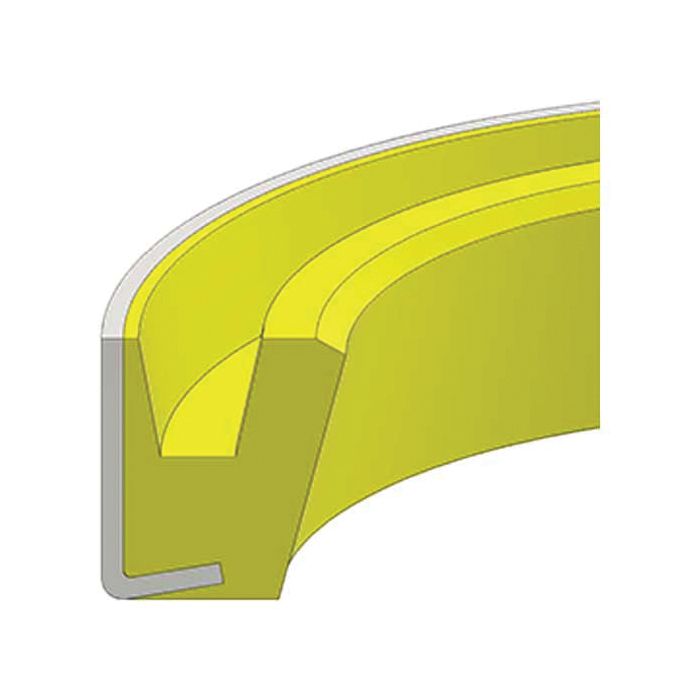

Designed for hydraulic cylinder rod sealing applications, the Metal-Clad Rubber Wiper Ring, 2.25 Inch Rod Diameter, 2.75 Inch Wiper OD, 0.25 Inch Height from Hercules Sealing Products combines a rubber sealing element with a rigid metal cladding for reliable dirt and contaminant exclusion. The metal outer casing provides structural rigidity during installation and helps maintain consistent positioning within the seal groove, while the rubber wiper lip contacts the rod surface to scrape debris before it can reach internal seals.

Rated for a temperature range of -40°F to 240°F, this wiper ring suits a broad range of hydraulic cylinder service conditions. With a 2.25-inch rod diameter, a 2.75-inch wiper OD, and a 0.25-inch height, it is sized for direct replacement in compatible cylinder assemblies without modification. The metal-clad construction is particularly well suited to environments where the wiper is subject to handling stress or side-loading during installation.

SKU: MCN-2253

Supplier Part Number (MPN): MCN-2253

Alternate Part Numbers: C1DD97, MI-00943076, MINO-00407X15132

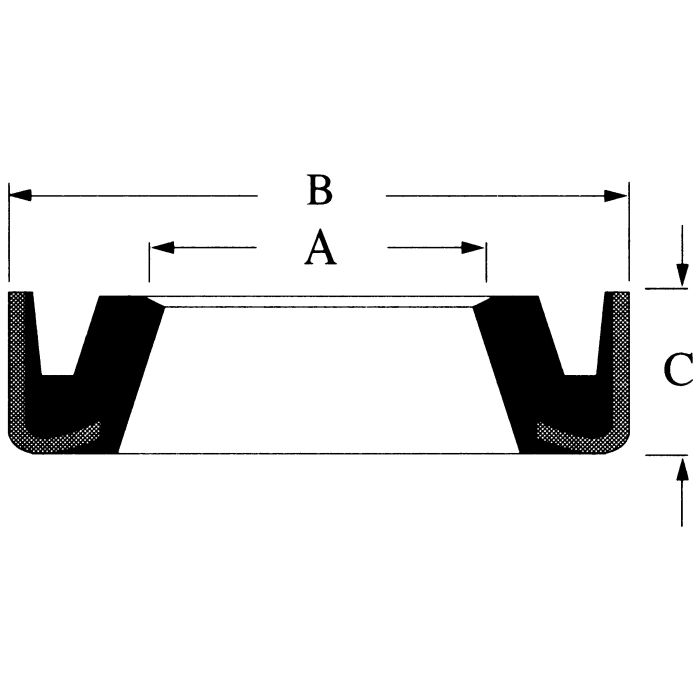

Specifications

C
0.25
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Rod Diameter A
2.25
Supplier Part Number
MCN-2253
Product Weight
0.04 lbs
Alternate Part Numbers
Alternate Part Number C1DD97, Alternate Part Number MI-00943076, Alternate Part Number MINO-00407X15132

Similar Products

Model Number Rod Diameter A Wiper O.D. B C Price Action
Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.13 Inch Height

MCN-1001 Metal-Clad Rubber Wiper Ring

1

1.25

0.125

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.38 Inch Wiper OD, 0.19 Inch Height

MCN-1003 Metal-Clad Rubber Wiper Ring

1

1.375

0.1875

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.50 Inch Wiper OD, 0.19 Inch Height

MCN-1005 Metal-Clad Rubber Wiper Ring

1

1.5

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.69 Inch Wiper OD, 0.19 Inch Height

MCN-1253 Metal-Clad Rubber Wiper Ring

1.25

1.688

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.25 Inch Height

MCN-1254 Metal-Clad Rubber Wiper Ring

1.25

1.75

0.25

Metal-Clad Rubber Wiper Ring, 1.38 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.19 Inch Height

MCN-1375 Metal-Clad Rubber Wiper Ring

1.375

1.75

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.25 Inch Height

MCN-1502 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.25

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.19 Inch Height

MCN-1503 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 2.00 Inch Wiper OD, 0.25 Inch Height

MCN-1504 Metal-Clad Rubber Wiper Ring

1.5

2

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.13 Inch Wiper OD, 0.19 Inch Height

MCN-1753 Metal-Clad Rubber Wiper Ring

1.75

2.125

0.1875

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.25 Inch Wiper OD, 0.25 Inch Height

MCN-1754 Metal-Clad Rubber Wiper Ring

1.75

2.25

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.25 Inch Height

MCN-1755 Metal-Clad Rubber Wiper Ring

1.75

2.375

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.19 Inch Height

MCN-2001 Metal-Clad Rubber Wiper Ring

2

2.375

0.1875

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.63 Inch Wiper OD, 0.25 Inch Height

MCN-2002 Metal-Clad Rubber Wiper Ring

2

2.625

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.50 Inch Wiper OD, 0.25 Inch Height

MCN-2003 Metal-Clad Rubber Wiper Ring

2

2.5

0.25

Metal-Clad Rubber Wiper Ring, 2.25 Inch Rod Diameter, 2.75 Inch Wiper OD, 0.25 Inch Height

MCN-2253 Metal-Clad Rubber Wiper Ring

2.25

2.75

0.25

Metal-Clad Rubber Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.25 Inch Height

MCN-2501 Metal-Clad Rubber Wiper Ring

2.5

3

0.25

Metal-Clad Rubber Wiper Ring, 3.00 Inch Rod Diameter, 3.50 Inch Wiper OD, 0.25 Inch Height

MCN-3001 Metal-Clad Rubber Wiper Ring

3

3.5

0.25

Product Questions & Answers (1)

Question by: Brent J on Jan 6, 2026, 8:23 AM
Got a cylinder with a 2.25-inch rod that needs a new wiper, this one gonna drop right in without any machining or fitup work?
Answer by: Customer Support on Jan 8, 2026, 6:11 AM
For any cylinder already built around a 2.25-inch rod diameter with a groove sized for a 2.75-inch OD and 0.25-inch height, this is a straight swap. The metal outer casing holds its shape during installation, so you're not fighting the part to get it seated right. No modification should be needed as long as your groove dimensions match.
