Metal-Clad Urethane Wiper Ring, 2.25 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.25 Inch Height

Description & Features

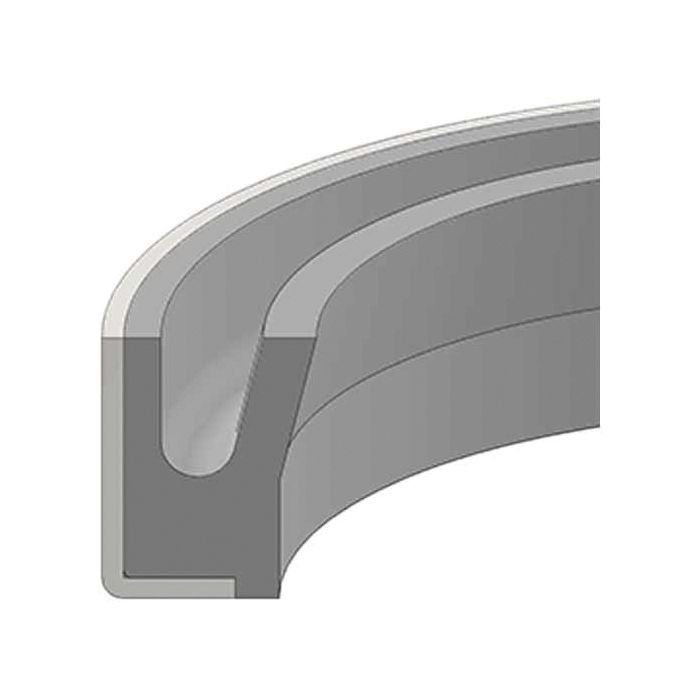

Designed for hydraulic cylinder rod applications, the Metal-Clad Urethane Wiper Ring from Hercules Sealing Products combines a rigid metal casing with a urethane wiping lip to exclude contaminants from entering the cylinder as the rod retracts. The metal cladding provides structural support and ensures consistent press-fit retention in the housing bore.

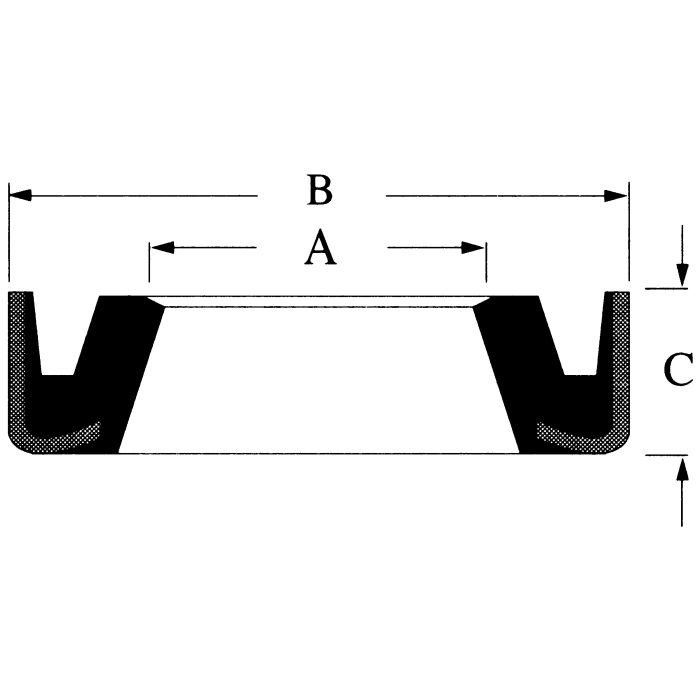

This wiper ring fits a 2.25-inch rod diameter, with a 3.00-inch outer diameter and a 0.25-inch height. The urethane construction supports a temperature range of -65°F to 220°F, making it suitable for a broad range of industrial hydraulic equipment operating in varied environmental conditions. It carries catalog reference C1DE37 and is manufactured by Hercules Sealing Products.

SKU: MCU-2252-G

Supplier Part Number (MPN): MCU-2252-G

Alternate Part Numbers: C1DE37, MCU-2252-D

Specifications

Brand
HERCULES® SEALING PRODUCTS
Dimensions
1/4 in THK
Durometer
92
Material
Urethane
Series
MCU Series
Wiper OD b Dimensions
3 in

Similar Products

Model Number Inside Diameter Outside Diameter Price Action
Metal-Clad Urethane Wiper Ring, 0.88 Inch Rod Diameter, 1.38 Inch Wiper OD, 0.31 Inch Height

MCU-0875-G Metal-Clad Urethane Wiper Ring

Metal-Clad Urethane Wiper Ring, 2.00 Inch Rod Diameter, 2.69 Inch Wiper OD, 0.38 Inch Height

MCU-2006-G Metal-Clad Urethane Wiper Ring

Metal-Clad Urethane Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.19 Inch Height

MCU-2503-G Metal-Clad Urethane Wiper Ring

2-1/2 in

Metal-Clad Urethane Wiper Ring, 0.19 Inch Rod Diameter, 1.63 Inch Wiper OD, 0.25 Inch Height

MCU-1187-G Metal-Clad Urethane Wiper Ring

1-3/16 in

Metal-Clad Urethane Wiper Ring, 1.13 Inch Rod Diameter, 1.63 Inch Wiper OD, 0.31 Inch Height

MCU-1120-G Metal-Clad Urethane Wiper Ring

1-1/8 in

Metal-Clad Urethane Wiper Ring, 0.75 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.31 Inch Height

MCU-0750-G Metal-Clad Urethane Wiper Ring

3/4 in

MCU-1000-G

MCU-1000-G

1 in

HERCULES RCW-90URE-1-1/4X1-3/4X5/16

MCU-1250-D

1-1/4 in

HERCULES RCW-90URE-1-3/8X1-7/8X5/16

MCU-1375-D

1.38 in

HERCULES ROD WIPER METAL CLAD

MCU-1500-D

1-1/2 in

HERCULES RCW-90URE-1-1/2X2-1/4X3/8

MCU-1506-D

1-1/2 in

HERCULES HEAVY DUTY METAL CLAD URETHANE WIPER RING

MCU-1750-D

1-3/4 in

HERCULES Heavy Duty Metal Clad Urethane Wiper Rings

MCU-1751-D

1-3/4 in

HERCULES SEALING PRODUCTS SEAL. METAL CLAD URETHANE WIPER RING. 2 ID

MCU-2000-D

HERCULES METAL CLAD WIPER

MCU-2001-G

HERCULES Metal CLAD WIPER

MCU-2003-G

HERCULES HEAVY DUTY METAL CLAD WIPER RIN

MCU-2250-D

MCU-2376-G

MCU-2376-G

HERCULES HEAVY DUTY METAL CLAD URETHANE WIPER RING 2-1/2 X 3X 5/16

MCU-2500-D

2-1/2 in

HERCULES CLAD ROD WIPER

MCU-2750-D

HERCULES CLAD ROD WIPER

MCU-3000-D

3 in

HERCULES METAL CLAD URETHANE WIPER RING

MCU-4005-D

HERCULES METAL CLAD WIPER RING

MCU-4505-D

Product Questions & Answers (1)

Question by: Dwayne M on Nov 3, 2025, 6:39 AM
Got a cylinder rod measuring 2.25 inches across, will this wiper ring fit without needing any modification to the housing bore?
Answer by: Customer Support on Nov 4, 2025, 8:42 AM
For a 2.25-inch rod, you're looking at the right part. The outer diameter comes in at 3.00 inches and the height is 0.25 inches, so as long as your housing bore is machined to accept those dimensions, it should press in clean. The metal cladding is what handles retention in the bore, so you get a consistent fit without needing adhesive or extra hardware to keep it seated.
