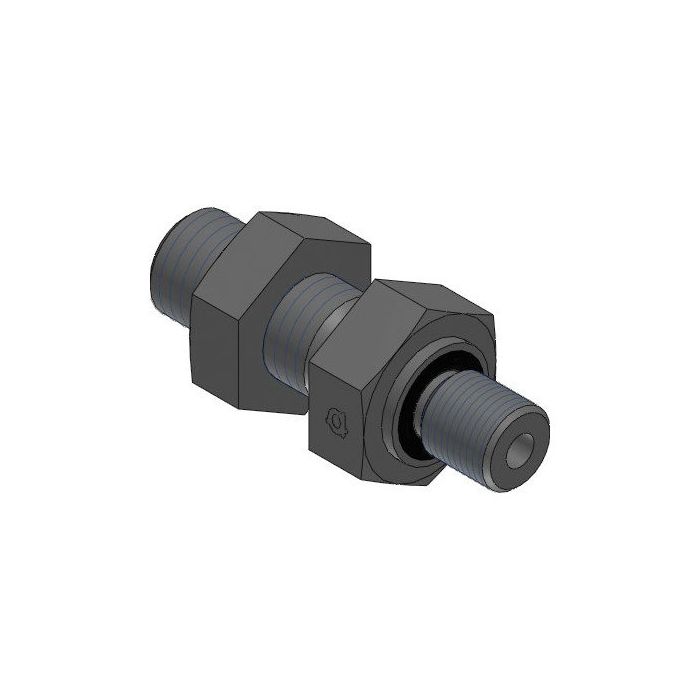

Metric Din Bulkhead-Male Bspp

Ask A Question

Description & Features

Constructed from durable steel, this Metric Din Bulkhead-Male Bspp fitting is designed for secure and reliable connections in hydraulic systems. Featuring a straight shape, it connects M16 x 1.5 Din Tube threads on one side and G 3/8 - 19 BSPP threads on the other, providing versatility in its application. This male-to-male adapter is manufactured by Adaptall, ensuring compatibility and quality in industrial settings. Ideal for use in high-pressure environments, this fitting supports efficient fluid transfer and system integrity.

SKU: 5040-L10-06ESX

Supplier Part Number (MPN): 5040-L10-06ESX

Specifications

Brand
adapt-all
Connection Size 2
3/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP Elastomeric Seal
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Dimensions
49 mm L
Finish
Zinc-Plated
Fitting Type
Union
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5040ES Series
Thread Size
3/8-19 x M16x1.5

Product Questions & Answers (3)

Question by: Daryl M on May 27, 2025, 7:22 AM
got a bulkhead port and need to go from M16 x 1.5 DIN tube to a 3/8 BSPP, is that what this adapter does?
Answer by: Customer Support on May 28, 2025, 11:24 AM
For a bulkhead pass-through, it mates an M16 x 1.5 DIN tube thread on one side to a G 3/8 - 19 BSPP male thread on the other. Both ends are male, and the body is a straight steel fitting.
Question by: Troy P on Mar 19, 2026, 8:58 PM
What kind of pressure can this fitting handle?
Answer by: Customer Support on Mar 21, 2026, 6:56 AM
Designed for use in high-pressure environments, this fitting should provide efficient fluid transfer and maintain system integrity.
Question by: Dustin B on Apr 18, 2025, 8:48 AM
Got a machine running DIN tube fittings on one end but the port on the manifold is BSPP, this the kind of adapter that bridges that gap?
Answer by: Customer Support on Apr 19, 2025, 8:54 PM
That's what this fitting handles. One side threads onto M16 x 1.5 DIN tube connections and the other side is G 3/8-19 BSPP, so it bridges those two thread standards in a straight-through configuration. Both sides are male, and the bulkhead design means it can pass through a panel or housing as part of the installation. Steel construction keeps it solid in industrial hydraulic environments where you need reliable fluid transfer without leaks at the joint.
