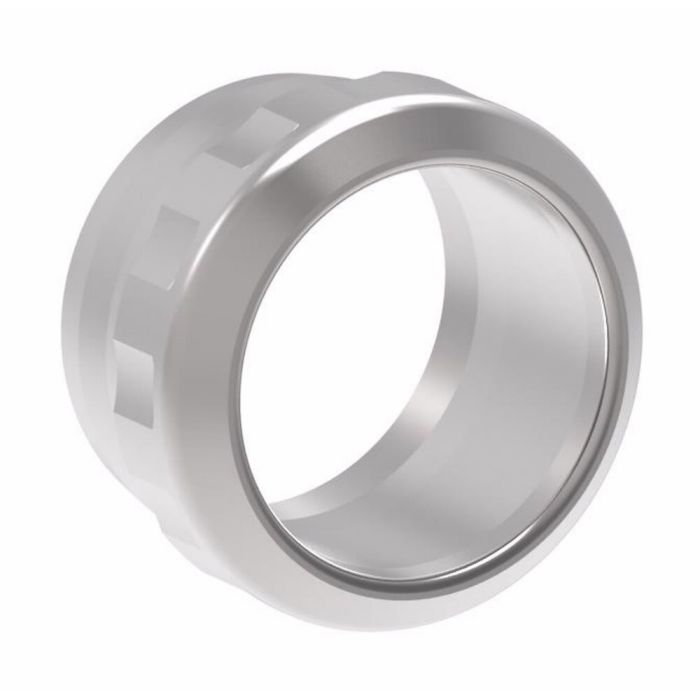

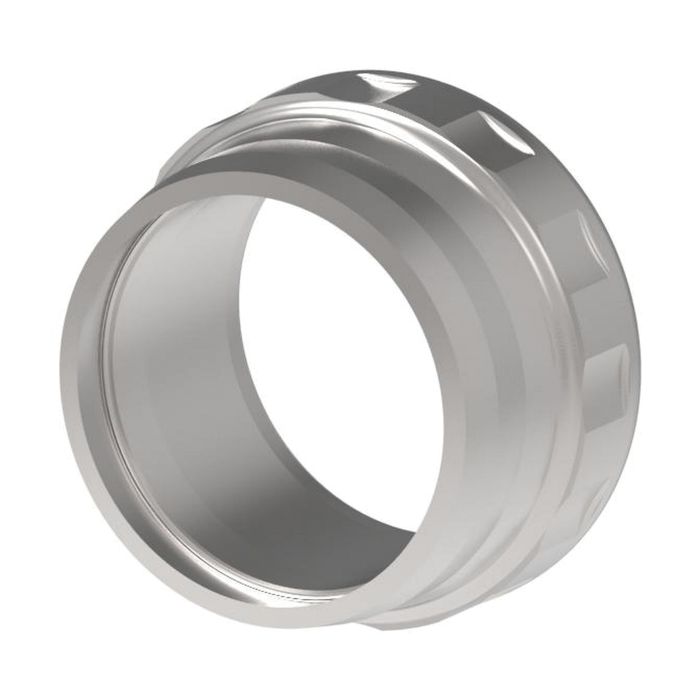

Steel Metric Flareless Fitting, 10.00 mm L Series Profile Ring

Description & Features

Crafted from high-quality forged or drawn steel, this Metric Flareless Profile Ring ensures robust performance under demanding conditions. Designed to conform to the latest DIN standards, this fitting is ideal for industrial applications requiring precise and reliable connections. It features a tube outer diameter of 10.00 mm and operates efficiently within a maximum pressure range of 500 bar. The product is also engineered to withstand temperatures up to 120°C, making it suitable for a variety of hydraulic systems.

The Steel Metric Flareless Fitting, 10.00 mm L Series Profile Ring, is part of the Eaton Aeroquip brand, known for its durable and high-performing hydraulic solutions. The L Series design offers a versatile fit for systems requiring metric specifications, ensuring compatibility and functionality in diverse environments. With a comprehensive fluid compatibility guide available, this fitting provides users with additional confidence in its adaptability and performance.

SKU: WAL372406

Supplier Part Number (MPN): WAL372406

Alternate Part Numbers: C1KX40, MI-08410203, MINO-20742F66699

Specifications

Brand Aeroquip® by Danfoss	Connection Size 2 10 mm	Fitting Type Profile Ring	Material Steel	Segment Code A	Series L Series

Similar Products

Model Number	Tube O.D.	Series	Maximum Operating Pressure
WAL372405 Metric Flareless Profile Ring	8	L	500
WAL372415 Metric Flareless Profile Ring	16	S	630
WAL372417 Metric Flareless Profile Ring	25	S	420
WAL372418 Metric Flareless Profile Ring	30	S	420
WAL039862 Metric Flareless Profile Ring	4	LL	100
WAL372404 Metric Flareless Profile Ring	6	L	500
WAL372407 Metric Flareless Profile Ring	12	L	400
WAL372408 Metric Flareless Profile Ring	15	L	400
WAL372409 Metric Flareless Profile Ring	18	L	400
WAL372410 Metric Flareless Profile Ring	22	L	250
WAL372411 Metric Flareless Profile Ring	28	L	250
WAL372416 Metric Flareless Profile Ring	20	S	420

Product Questions & Answers (1)

Question by: Sherry H on Nov 21, 2025, 8:34 PM

does this profile ring fit a 10mm tube or is that the thread size i need to worry about

Answer by: Customer Support on Nov 23, 2025, 11:22 AM

The 10mm measurement refers to the outer diameter of the tube, not a thread size. So if you're working with 10mm OD tubing, this is the ring that goes with it. It's part of the L Series flareless fitting system, which means the ring bites into the tube during assembly rather than requiring any flaring beforehand.
