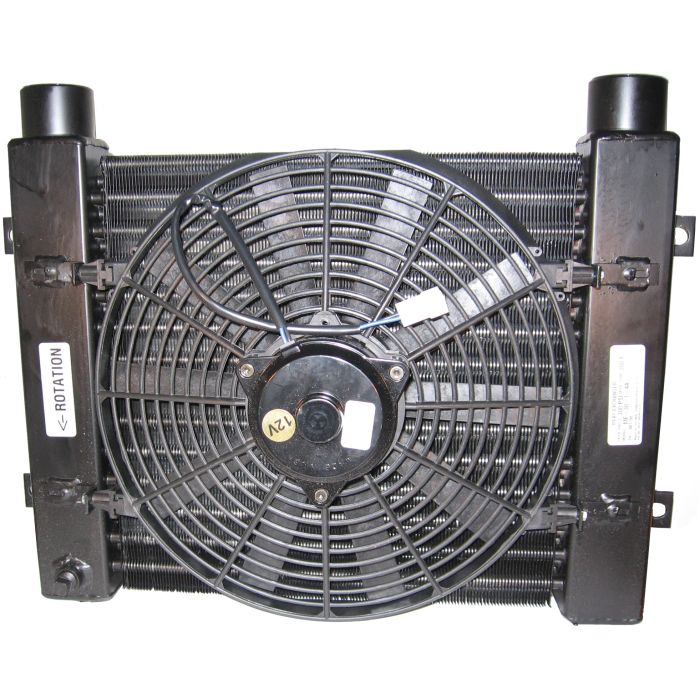

MF Series Air Cooled Powered Fan Mobile Heat Exchangers, Up To 50000 BTU/hr Heat Removal
Description & Features
| DC Motor Models | 12VDC: 12.5 Amps with one fan, 25 Amps with two fans. 24VDC: 6.3 Amps with one fan, 12.6 Amps with two fans. |
| Features | Available with 12 or 24VDC electric motor(s), hydraulic motor(s) or without motor(s). Heavy duty construction, rugged steel manifolds. Optional serviceable relief by-pass valve (30 or 60 PSI). Optional electronic fan control kit (Part No. 96171). Heat removal to 50,000 BTU/Hr. Oil flow to 150 GPM. NPT, SAE straight thread O-Ring and Male 37° JIC flare ports available. |
| Hydraulic Motor Models | 0.22 in³ motor displacement. 2000 PSI maximum. 1000 PSI allowable back pressure. 2200 RPM maximum fan speed. 2.1 GPM at 300 PSI with one fan. 4.2 GPM at 300 PSI with two fans. |
| Materials | Copper tubes. Aluminum fins. Steel manifolds, turbulators. High impact plastic fan assembly. |
| Maximum Operating Temperature | 350°F. |
| Pressure Rating | 300 PSI Operating. |
Products
| Model Number | Voltage | Bypass Spring | A | B | C | D | E | F | G | H | Ports | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MF-30-1-4A MF Series Heat Exchanger |
12VDC |
|
16.58 |
19.75 |
6.1 |
21.25 |
17.25 |
2.5 |
9 |
3.06 in |
1-1/2 NPT |
|
Product Questions & Answers (1)
Question by: Sheila H on Nov 14, 2025, 6:44 AM
How hot can this thing get before it gives out?
Answer by: Customer Support on Nov 15, 2025, 5:46 PM
The maximum operating temperature for these heat exchangers is 350°F.
