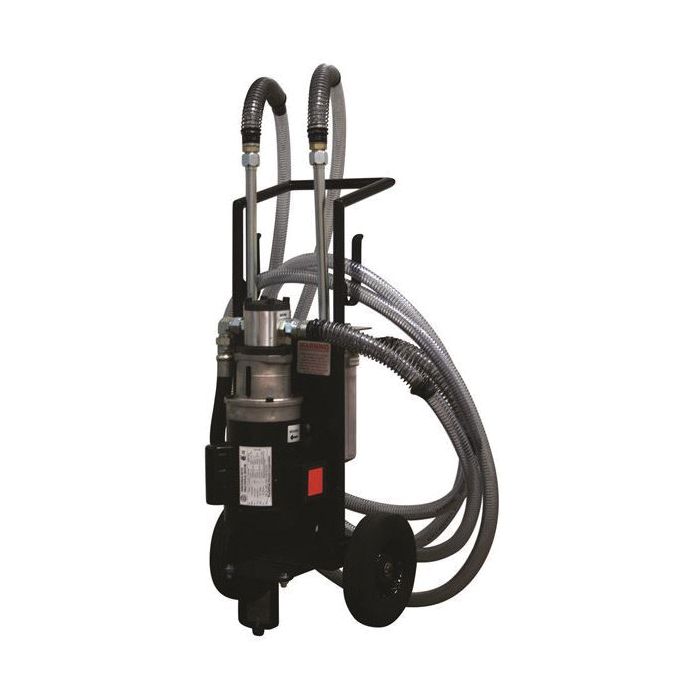

MFD Series Mobile Filtration System, 9 Inch H10 & H05 Excellement® Z-Media® Elements

Description & Features

Designed for optimal hydraulic filtration this unit integrates H10 & H05 Excellement Z-Media elements. The system is engineered with a 115 VAC single-phase 1 hp motor ensuring consistent and reliable performance.

Featuring a top-ported filter for easy element servicing the unit is equipped with a D10 auto-reset indicator to signal when element replacement is necessary. It comes with included hoses and connection tubes allowing for straightforward setup.

A compact and portable solution this filtration system operates within a temperature range of 25F to 150F and a maximum operating pressure of 30 PSI making it suitable for diverse industrial applications involving petroleum-based hydraulic fluids.

The integrated drip pan effectively collects oil drips preventing spills and maintaining cleanliness in operational environments. Its flow rating of 10 GPM adds to its utility in demanding hydraulic setups.

MPN: C1MH36

Supplier Part Number: 7616423

Specifications

Alternate Part Numbers Alternate Part Number 7616423, Alternate Part Number C1MH36, Alternate Part Number MFDBC 109 H10 H05, Alternate Part Number MFDBC109H10H05, Alternate Part Number MI-08751288, Alternate Part Number MINO-00733X96542, Alternate Part Number RFC	Brand Schroeder Industries	Brand Schroeder Industries	Pack Size 1.00	UOM EA	Element H10 & H05 Excellement® Z-Media®	Includes D10 Auto-Reset Indicator	Length 9	Supplier Part Number 7616423	Product Weight 102.00 lbs

Product Questions & Answers (3)

Question by: Terry R on Feb 1, 2026, 5:05 PM

flow rating on this thing is 10 GPM -- is that enough to handle a standard hydraulic reservoir setup on a mid-size piece of equipment, or would it bog down trying to keep up?

Answer by: Customer Support on Feb 3, 2026, 4:09 PM

For most mid-size hydraulic systems, 10 GPM is plenty for a kidney loop or offline filtration setup. You're not running this inline under full pump demand -- it works alongside your system, pulling fluid through at its own pace and returning it cleaned. That approach works well for maintaining fluid cleanliness on equipment that runs regular shifts. Just keep in mind the max operating pressure is 30 PSI, so this isn't meant for high-pressure line filtration. Stick to offline or recirculating use and 10 GPM will serve you just fine.

Question by: Bobby W on Jul 18, 2025, 12:16 PM

i’ve got a hydraulic tank that’s been sitting a while. is this cart basically for cleaning petroleum based hydraulic oil before i put it back in service

Answer by: Customer Support on Jul 20, 2025, 6:30 AM

For cleaning up petroleum based hydraulic fluid, this mobile filtration system is a good fit. It is built around H10 and H05 Excellement Z-Media elements and is meant to filter petroleum based hydraulic oil as you circulate it through the cart.

Question by: Billy W on Feb 28, 2026, 8:20 PM

Will this mobile filtration system work with any kind of hydraulic fluid?

Answer by: Customer Support on Mar 2, 2026, 3:30 PM

It's designed for petroleum-based hydraulic fluids. You'd need to check with the factory if you're planning to use it with anything else.
