1000/400/500 Series MIL-C-4109 Industrial Interchange Air Swing Coupling, Female Half With Safety Vent, -06 Coupling, 3/8-18 Female NPT

Description & Features

The 1000/400/500 Series MIL-C-4109 Industrial Interchange Air Swing Coupling Female Half With Safety Vent -06 Coupling 3/8-18 Female NPT by RTC North America Ltd ensures high tool performance with its efficient design. This coupling features a protective collar to prevent accidental disconnection and a pin latching mechanism for secure connections.

Constructed from durable zinc and nickel-plated steel this coupling swivels 360deg; to reduce hose kinking. It meets MIL-C-4109 dimensional requirements for interchangeability and provides safe automatic venting of trapped air during disconnection. The Buna-N seal material is standard ensuring a tight seal without the need for thread sealant.

Ideal for industrial applications it interchanges seamlessly with Aeroquip FD40 Series and other major coupling brands. The coupling is designed with an automatic sleeve for one-hand push-to-connect operation making it user-friendly and reliable.

Supplier Part Number: R20500026

Specifications

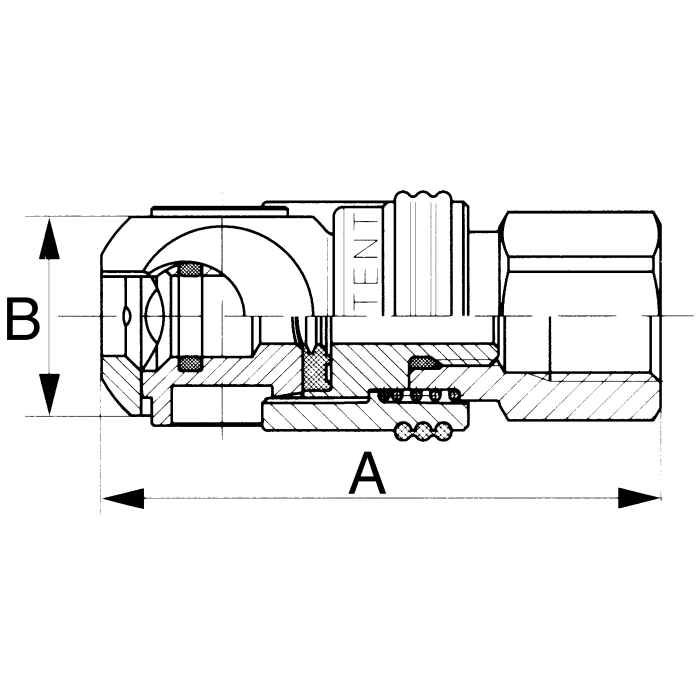

A 2.79	B 0.94	Coupling Size -06	Brand RTC North America Ltd	Brand RTC North America	Pack Size 1.00	UOM EA	Seal Material Buna-N	Supplier Part Number R20500026	Thread 1 3/8-18	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1ZY94, Alternate Part Number MI-07566909, Alternate Part Number MINO-00691X00137	Product Weight 0.31 lbs

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
20500026 MIL-C-4109 Industrial Air QD	-06	3/8-18	Buna-N	2.79	0.94
20500110 MIL-C-4109 Industrial Air QD	-08	1/2-14	Buna-N	3.31	1.38
20500311 MIL-C-4109 Industrial Air QD	-04	1/4-18	Buna-N	2.54	0.79

Product Questions & Answers (2)

Question by: Larry W on May 5, 2025, 10:29 AM

what's the deal with that safety vent feature on this coupling

Answer by: Customer Support on May 6, 2025, 6:40 PM

Safety vents automatically release trapped air pressure when you disconnect the coupling, preventing dangerous pressure buildup and making disconnection safer. Without it, stored pressure could cause the coupling to pop off forcefully when disconnected, which creates safety hazards in industrial air systems.

Question by: Shawn R on Feb 17, 2025, 8:45 PM

I’m lookin to hook up some air tools... will this fit standard fittings?

Answer by: Customer Support on Feb 19, 2025, 4:14 PM

This female half coupling is made to the MIL-C-4109 standard, which is an industrial interchange. It has a 3/8-18 female NPT thread, so as long as your air tools and fittings are compatible with that standard and thread size, it should work for you.
