1000/400/500 Series MIL-C-4109 Industrial Interchange Air Swing Coupling, Female Half With Safety Vent, -08 Coupling, 1/2-14 Female NPT

Description & Features

The 1000/400/500 Series MIL-C-4109 Industrial Interchange Air Swing Coupling Female Half With Safety Vent -08 Coupling 1/2-14 Female NPT supplied by RTC North America Ltd is designed for robust industrial applications. This coupling ensures safe automatic venting of trapped air during disconnection which enhances operational safety.

Featuring a pin latching mechanism and a protective collar this coupling minimizes accidental snagging and unintentional disconnection. The coupling swivels 360deg; eliminating hose kinking and ensuring smooth airflow. Its standard seal material is Buna-N and the body is constructed from zinc and nickel-plated steel delivering durability and reliability.

This model is compatible with Aeroquip FD40 Series and meets the dimensional requirements of MIL-C-4109 for industrial interchangeability. The coupling is engineered with a one-hand push-to-connect operation for convenience and efficiency.

Supplier Part Number: R20500110

Specifications

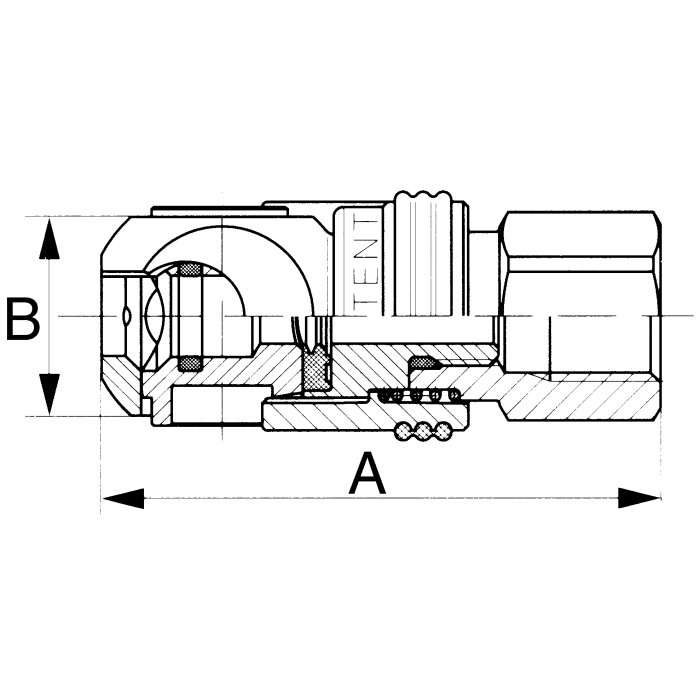

A 3.31	B 1.38	Coupling Size -08	Brand RTC North America Ltd	Brand RTC North America	Pack Size 1.00	UOM EA	Seal Material Buna-N	Supplier Part Number R20500110	Thread 1 1/2-14	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1FF61, Alternate Part Number MI-07571894, Alternate Part Number MINO-00691X00144	Product Weight 0.93 lbs

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
20500026 MIL-C-4109 Industrial Air QD	-06	3/8-18	Buna-N	2.79	0.94
20500110 MIL-C-4109 Industrial Air QD	-08	1/2-14	Buna-N	3.31	1.38
20500311 MIL-C-4109 Industrial Air QD	-04	1/4-18	Buna-N	2.54	0.79

Product Questions & Answers (2)

Question by: Janet E on Jan 30, 2026, 4:53 PM

How does this thing keep from gettin' snagged on stuff and disconnected by accident?

Answer by: Customer Support on Feb 1, 2026, 6:45 AM

A protective collar helps prevent accidental snagging and unintentional disconnection. Plus, it's got a pin latching mechanism for extra security.

Question by: Lee E on Aug 30, 2025, 8:18 PM

does this thing vent off the air pressure before it fully disconnects, or do you just get a blast of air when you pull it apart?

Answer by: Customer Support on Sep 1, 2025, 6:13 PM

Safe automatic venting of trapped air happens during the disconnect process, so you're not getting a sudden pressure release all at once. The swing coupling design lets you retract the release sleeve and swing the assembly to an angled position, which bleeds off the pressure in a controlled way before the halves fully separate. That's one of the main reasons this series gets used in air tool applications where you'd rather not have pressurized air kicking back at you every time you break a connection.
