1000/400/500 Series MIL-C-4109 Industrial Interchange Air Swing Coupling, Female Half With Safety Vent, -04 Coupling, 1/4-18 Female NPT

Description & Features

RTC North America Ltd presents an air swing coupling designed for high performance and industrial applications. Featuring a robust pin latching mechanism and a protective collar this component meets the MIL-C-4109 requirements for interchangeability. The 1/4-18 female NPT thread ensures efficient connectivity while the 360deg; swivel function eliminates hose kinking. This coupling boasts a heavy-duty brass body material and standard Buna-N seal material.

MPN: Eaton FD40 Series Air Quick Disconnects

Supplier Part Number: R20500311

Specifications

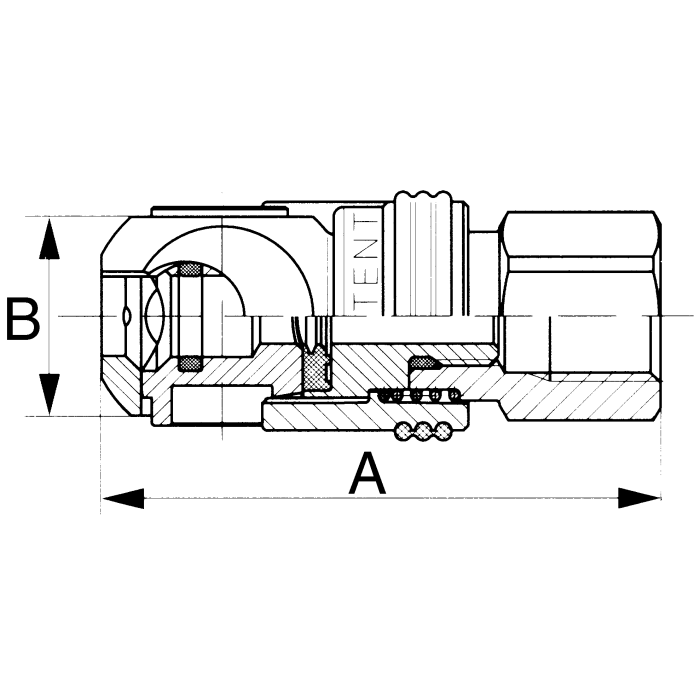

A 2.54	B 0.79	Coupling Size -04	Brand RTC North America Ltd	Brand RTC North America	Pack Size 1.00	UOM EA	Seal Material Buna-N	Supplier Part Number R20500311	Thread 1 1/4-18	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1ZY90, Alternate Part Number MI-08754629, Alternate Part Number MINO-00691X96666	Product Weight 0.23 lbs

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B	Price	Action
20500026 MIL-C-4109 Industrial Air QD	-06	3/8-18	Buna-N	2.79	0.94
20500110 MIL-C-4109 Industrial Air QD	-08	1/2-14	Buna-N	3.31	1.38

Product Questions & Answers (1)

Question by: Randy C on Feb 24, 2026, 8:47 AM

got a 1/4-18 female NPT air line, is this the right female end for it?

Answer by: Customer Support on Feb 26, 2026, 7:47 AM

For a 1/4-18 female NPT connection, the thread on this coupling matches that spec. It is the female half and it is a -04 coupling size, with a 360 degree swivel to help keep the hose from kinking once it is hooked up.
