1000/400/500 Series MIL-C-4109 Industrial Interchange Air Quick Disconnect, Male Half, -08 Coupling, 1/2-14 Male NPT

Description & Features

Designed for industrial applications the 1000/400/500 Series MIL-C-4109 Industrial Interchange Air Quick Disconnect Male Half -08 Coupling 1/2-14 Male NPT offers reliable performance with maximum operating pressures of up to 500 PSI. This coupling features a protective collar to prevent accidental disconnection and automatic sleeve for one-hand push-to-connect operation.

Constructed from high-quality brass it meets the dimensional requirements for MIL-C-4109 for industrial interchangeability ensuring compatibility with various male halves including Aeroquip FD40 Series and Milton. Its 360deg; swivel design eliminates hose kinking maintaining efficient air flow and optimal tool performance. The standard seal material is Buna N known for its durability and resistance to wear.

The Eaton FD40 Series air quick disconnect is designed with a pin latching mechanism for secure connections and also features rust-resistant properties making it suitable for demanding environments. Safe automatic venting of trapped air occurs during disconnection enhancing safety and efficiency.

MPN: R25500278

Supplier Part Number: R25500278

Specifications

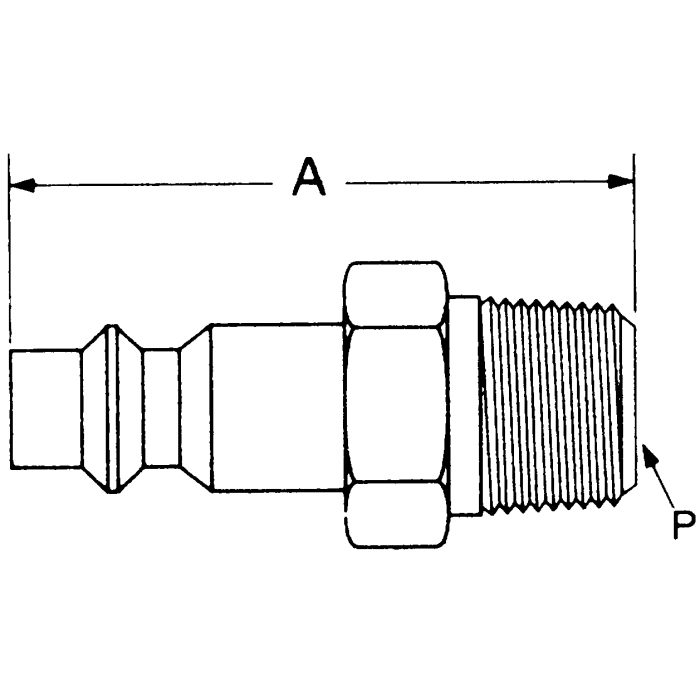

A 2.48	Coupling Size -08	Brand RTC North America Ltd	Brand RTC North America	Pack Size 1.00	UOM EA	Supplier Part Number R25500278	Thread 1 1/2-14	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1FV64	Product Weight 0.08 lbs

Similar Products

Model Number	Coupling Size	Thread 1	A
10 MIL-C-4109 Industrial Air QD	-04	1/4-18	1.75
25500278 MIL-C-4109 Industrial Air QD	-08	1/2-14	2.48
40 MIL-C-4109 Industrial Air QD	-06	1/4-18	1.88
42 MIL-C-4109 Industrial Air QD	-06	3/8-18	1.88
54E MIL-C-4109 Industrial Air QD	-08	1/2-14	2.44
DCP2502 MIL-C-4109 Industrial Air QD	-04	1/4-18	1.88
