Mjic X Mbspp Long

Description & Features

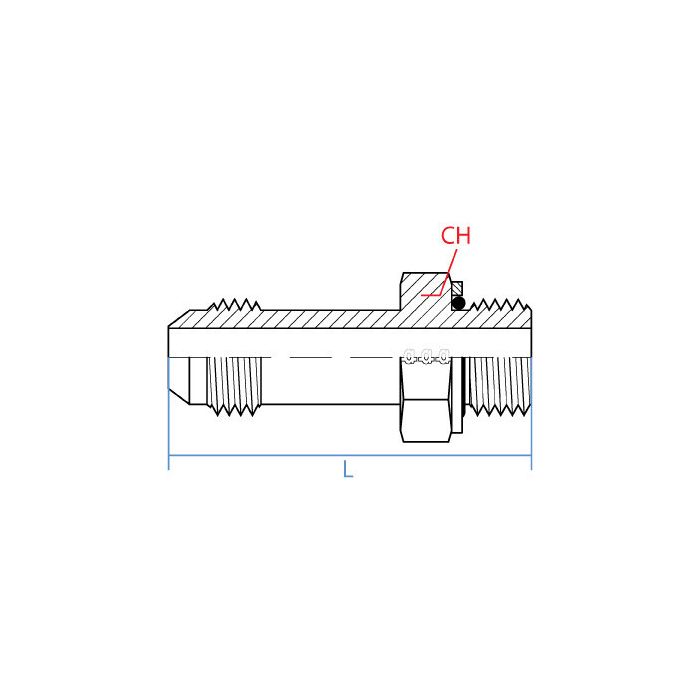

A straight steel adapter designed for connecting JIC and BSPP hydraulic lines, the Mjic X Mbspp Long bridges a 5/8" Male JIC fitting (7/8-14 UNF thread) on one end to a 1/2" Male BSPP fitting (G 1/2-14 thread) on the other. The extended length of 77mm makes it well suited for applications where additional reach or clearance is needed between mating ports.

Manufactured by Adaptall, this adapter is built from steel and carries a 27mm wrench flat for secure installation. The straight configuration simplifies inline connections in hydraulic circuits where JIC and BSPP thread standards must interface without additional bends or transitions.

SKU: 9002L-10-08

Supplier Part Number (MPN): 9002L-10-08

Specifications

CH Width 27mm	L Length 77mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9002L-10-08	Product Weight 0.35 lbs

Product Questions & Answers (3)

Question by: Jimmy M on Dec 7, 2025, 8:36 AM

Will this adapter hold up alright for connecting hydraulic lines on my tractor?

Answer by: Customer Support on Dec 8, 2025, 8:46 PM

Designed for connecting JIC and BSPP hydraulic lines, this steel adapter should work well on a tractor where you need to adapt those thread types.

Question by: Hubert E on Nov 18, 2025, 5:22 PM

got a hose end that’s 7/8-14 UNF male JIC, will this adapter mate up on that side?

Answer by: Customer Support on Nov 20, 2025, 7:50 AM

On the JIC end, it matches a 5/8 inch Male JIC with 7/8-14 UNF threads, so it’s set up to connect to the corresponding JIC counterpart for that size.

Question by: Warren F on Mar 22, 2026, 12:31 PM

Got a machine that needs a JIC line tied into a BSPP port but there ain't much room to work with angled fittings. Would a straight adapter with some extra length do the trick?

Answer by: Customer Support on Mar 24, 2026, 6:04 AM

Extra clearance is exactly what this one's built for. At 77mm long, it gives you more reach between mating ports than a standard-length adapter would, so if you're working in a tight bay where angled fittings just complicate things, a straight inline connection like this keeps it clean. One end is 5/8" Male JIC on a 7/8-14 UNF thread, the other is 1/2" Male BSPP on a G 1/2-14 thread. As long as those are your two thread standards, this adapter connects them directly without any bends or transitions in between.
