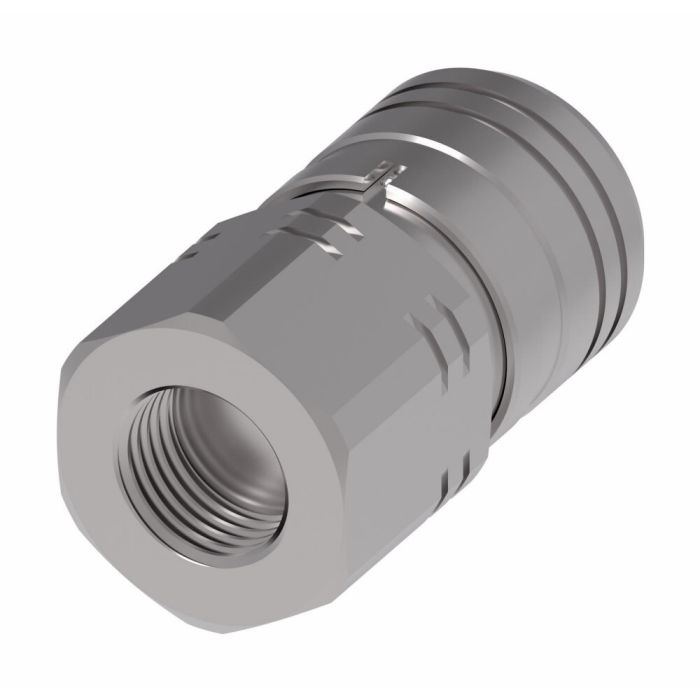

Constructed from 316 stainless steel with FKM seals, this flat-face female half coupling is built for demanding hydraulic environments where corrosion resistance and reliable sealing are essential. The 3/8-inch port size pairs a push-to-connect end with a 3/8-inch NPT port, accommodating a rated flow of 7.66 gallons per minute and a torque rating of 31.5 lb/ft. A sleeve lock mechanism secures the connection, and the flat-face internal design minimizes fluid loss and air inclusion during connect and disconnect cycles.
The Danfoss / Eaton Cplng FF Series is suited for a wide range of industries including construction, agriculture, oil and gas, marine, railway, and material handling. It connects and disconnects without special tools, and its design exceeds ISO 16028 operating pressures. Compliant with the European Pressure Equipment Directive (PED) 97/23 EC and REACH requirements, this Hansen sub-brand coupling carries a minimum working temperature of -4°F, making it appropriate for use in varied field conditions.
SKU: ML10FFS37143
Supplier Part Number (MPN): ML10FFS37143
|
Alternate Part Numbers
MINO-00015X14314
|
Application
Construction, Agriculture, Iron and Steel Industry, Railway, Oil and Gas, Marine, Material Handling, General Hydraulic applications
|
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|REACH
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
7.66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
316 Stainless Steel
|
Product Width
1.26
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
ML10FFS37143
|
Torque Rating
31.5 lb/ft
|
Torque Rating
31.5 lb/ft
|
Valve Type
2 way
|
Product Weight
0.54 lbs
|
