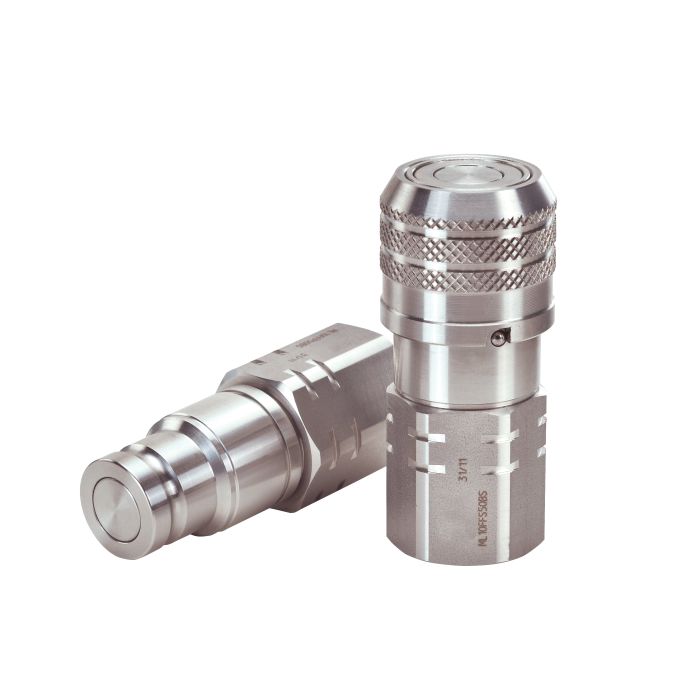

This CPLGS FF Male Half FLUSH FACE VITON SS, part of the Hansen sub-brand, is suitable for use in construction, agriculture, the iron and steel industry, railway, oil and gas, marine, material handling, and general hydraulic applications. This male half features a 2-way valve type, push-to-connect end type 1, and NPT end type 2. The flat face internal connection ensures a secure, leak-free connection.
Constructed from 316 stainless steel with FKM seals, this quick disconnect coupling offers quick connect and disconnect functionality, eliminating the need for special tools. It exceeds ISO 16028 operating pressures and features a sleeve lock safety locking mechanism. It has a 1 1/4 port size and a flow rate of 46.76 gallons per minute. It also meets European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3 and REACH compliances.
SKU: ML25FFP125143
Supplier Part Number (MPN): ML25FFP125143
|
Alternate Part Numbers
MINO-00015X14332
|
Application
Construction, Agriculture, Iron and Steel Industry, Railway, Oil and Gas, Marine, Material Handling, General Hydraulic applications
|
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|REACH|European Pressure Equipment Directive (PED) 97 /23 EC
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
46.76 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
Port Size
1 1/4
|
Product Material
316 Stainless Steel
|
Product Width
2.36
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
ML25FFP125143
|
Torque Rating
58.5 lb/ft
|
Torque Rating
58.5 lb/ft
|
Valve Type
2 way
|
Product Weight
2.37 lbs
|
