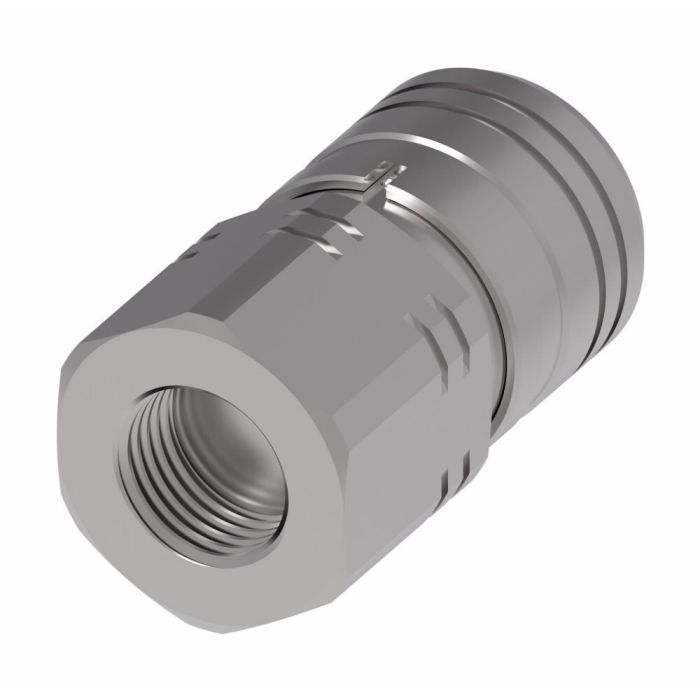

This DANFOSS / EATON/HANSEN CPLNG is a female half, part of the Hansen sub-brand of quick disconnect couplings. Constructed from 316 stainless steel, it utilizes a flat face internal connection type and NBR+AU seal material for reliable performance.
Designed for applications in construction, agriculture, iron and steel industries, railway, oil and gas, marine, and material handling, this coupling features a sleeve lock safety mechanism and a 2-way valve type. It exceeds ISO 16028 operating pressures and offers a flow rate of 46.76 gallons per minute.
The quick connect and disconnect design requires no special tools. This coupling complies with European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3 and REACH standards.
SKU: ML25FFS125
Supplier Part Number (MPN): ML25FFS125
|
Alternate Part Numbers
MINO-00015X14334
|
Application
Construction, Agriculture, Iron and Steel Industry, Railway, Oil and Gas, Marine, Material Handling, General Hydraulic applications
|
Certifications
ISO 16028
|
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|REACH
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
46.76 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-13
|
Product Material
316 Stainless Steel
|
Product Width
2.36
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
NBR+AU
|
Sub Brand
Hansen
|
Supplier Part Number
ML25FFS125
|
Torque Rating
58.5 lb/ft
|
Torque Rating
58.5 lb/ft
|
Valve Type
2 way
|
Product Weight
2.83 lbs
|
