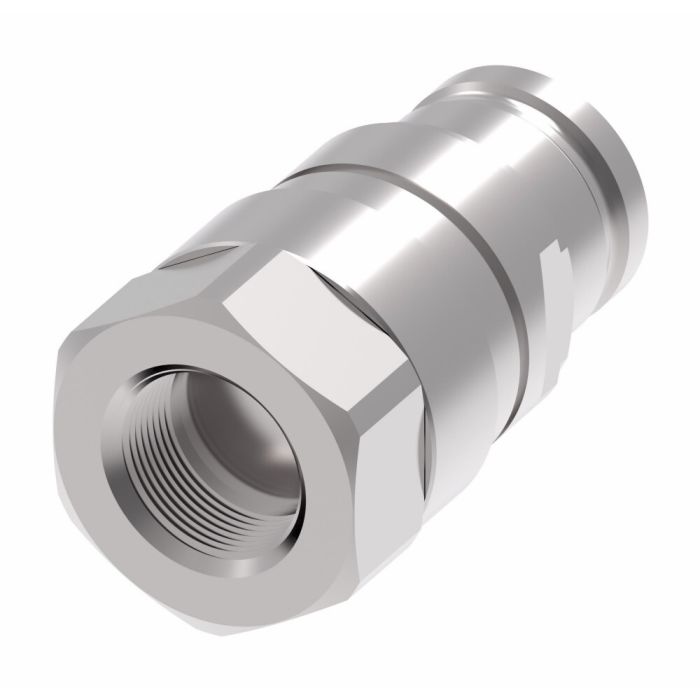

Designed for demanding fluid transfer applications, this 1/4 in. stainless steel male half coupling handles process fluids, chemicals, petrochemicals, pharmaceuticals, and food processing environments with equal suitability. The flat-face internal connection and sleeve lock safety mechanism work together to provide secure, tool-free connect and disconnect cycles that exceed ISO 16028 operating pressure requirements.
The Danfoss / Eaton Hansen MLDB Series Quick Disconnect Coupling Plug features a push-to-connect male end paired with a 1/4 in. NPT female port, rated for flow up to 4 gallons per minute with a minimum working temperature of -40°F. EPDM seals support compatibility across a broad range of media, including corrosive fluids and electrical cooling applications. The two-way valve design maintains flow control integrity on both halves of the connection. Compliant with the European Pressure Equipment Directive (PED) 97/23 EC Article 3.3, this coupling is well suited for controlled-environment industrial fluid transfer where leak-free performance and material compatibility are priorities.
SKU: ML2DBP25F292
Supplier Part Number (MPN): ML2DBP25F292
|
Alternate Part Numbers
MINO-00015X14337
|
Application
Process/fluid transfer, Cooling, Corrosive environments, Chemicals/petrochemicals, Pharmaceuticals, Food Processing, Electrical
|
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
4 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Port Size
1/4
|
Product Material
Stainless Steel
|
Product Width
0.96
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
EPDM
|
Sub Brand
Hansen
|
Supplier Part Number
ML2DBP25F292
|
Valve Type
2 way
|
Product Weight
0.17 lbs
|
