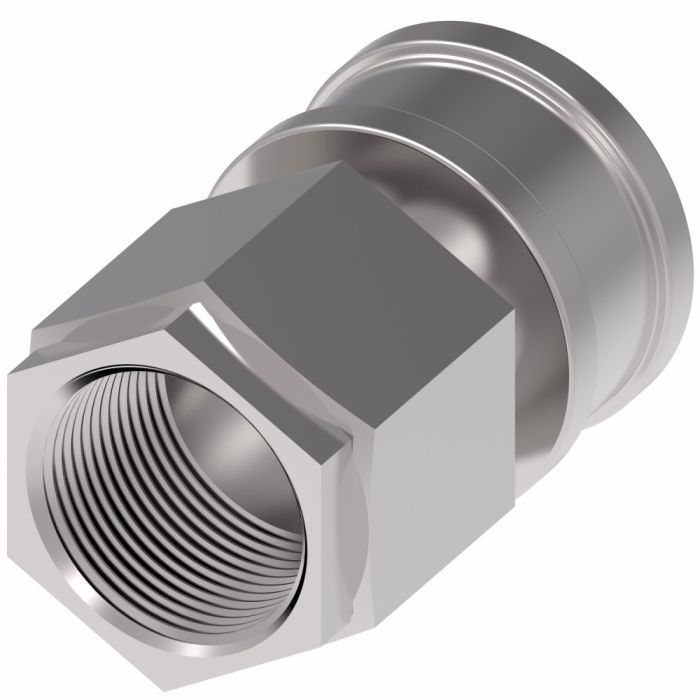

Constructed from 316 stainless steel with a Buna-N seal, this Female Coupling Sst is part of the Aeroquip Hansen HK Series and is built to handle demanding hydraulic and fluid transfer applications across agriculture, construction, oil and gas, aerospace, and a broad range of industrial environments. The 3/8 BSPP end connection pairs with a push-to-connect interface, and the ball lock internal mechanism enables quick, tool-free coupling and disconnection in the field.
Certified to ISO 7241-1 Series B, the coupling is rated for flow up to 6 gallons per minute and carries a minimum working temperature of -40°F, making it suitable for cold-climate and heavy-duty service conditions. The two-way valve design supports reliable fluid control, and the stainless steel construction provides strong resistance to corrosion in chemical, food and beverage, and marine-adjacent applications. No safety locking mechanism is included by design on this configuration.
SKU: ML3H21BS
Supplier Part Number (MPN): ML3H21BS
|
Alternate Part Numbers
MINO-00015X14365
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
316 Stainless Steel
|
Product Width
1.42
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
ML3H21BS
|
Valve Type
2 way
|
Product Weight
0.20 lbs
|
