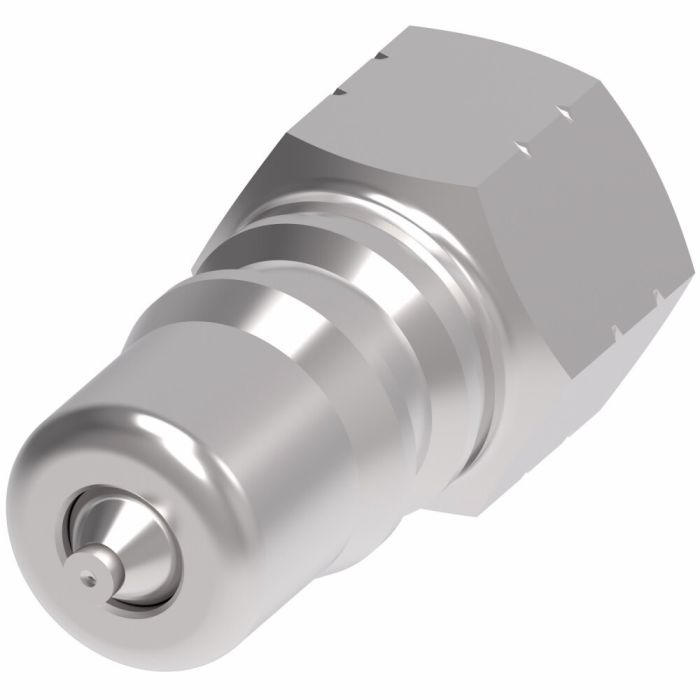

Constructed from 316 stainless steel with FKM seals, this male half quick disconnect coupling is built for demanding fluid transfer applications across agriculture, construction, oil and gas, aerospace, and military environments. The 3/8 in. port connects via a Push to Connect male end and a 3/8 in. NPTF female port, with a ball lock internal connection and a two-way valve configuration supporting flow rates up to 6 gallons per minute.
The Danfoss / Eaton Cplng HK Series carries ISO 7241-1 Series B certification and exceeds ISO 16028 operating pressure requirements, making it suitable for high-demand hydraulic tool and industrial applications. Rated for operation down to -40°F, it connects and disconnects without special tools. The Hansen sub-brand lineage and stainless steel construction make this coupling well-suited for chemical, food and beverage, HVAC, and other fluid transfer applications where corrosion resistance and reliability are priorities.
SKU: ML3K21143
Supplier Part Number (MPN): ML3K21143
|
Alternate Part Numbers
MINO-00015X14369
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
316 Stainless Steel
|
Product Width
1.01
|
Safety locking Mechanism
None
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
ML3K21143
|
Valve Type
2 way
|
Product Weight
0.07 lbs
|
