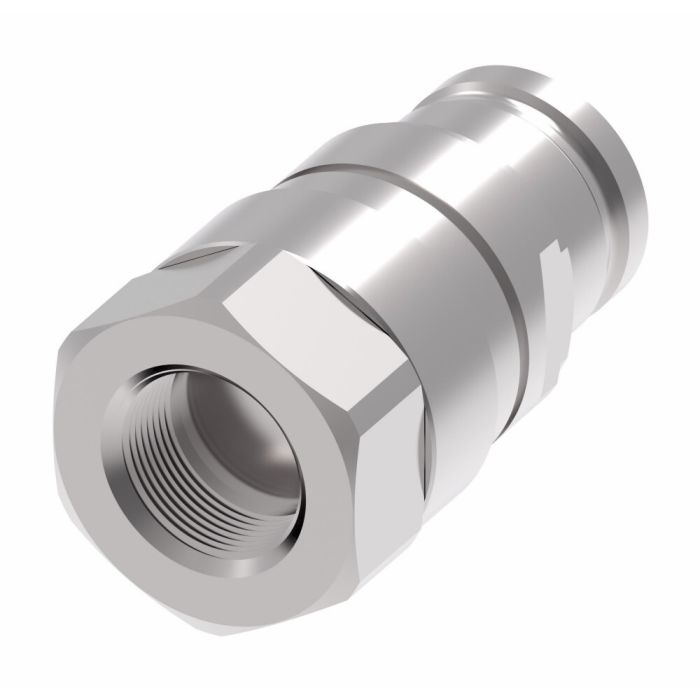

Designed for demanding fluid transfer environments, the Danfoss / Eaton Hansen MLDB Series Quick Disconnect Couplings Plug is a stainless steel male half coupling with a flat face internal connection and a sleeve lock safety mechanism. It features a 1/2 in. port size with a push-to-connect end on the male side and a 1/2 in. NPT female thread on the coupling end, supported by EPDM seals rated for temperatures as low as -40°F.
Suited for process and fluid transfer, cooling circuits, chemical and petrochemical lines, pharmaceutical, food processing, and electrical applications, this coupling connects and disconnects without special tools and exceeds ISO 16028 operating pressure requirements. The flat face design minimizes fluid loss and contamination at disconnect. With a flow rate of 19 GPM and certification to DESP 97/23/CE, this fitting is well matched to corrosive and hygienic process environments where material integrity and reliable sealing are essential.
SKU: ML4DBP50F292
Supplier Part Number (MPN): ML4DBP50F292
|
Alternate Part Numbers
MINO-00402X00952
|
Application
Process/fluid transfer, Cooling, Corrosive environments, Chemicals/petrochemicals, Pharmaceuticals, Food Processing, Electrical
|
Certifications
DESP 97/23/CE
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
19 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Port Size
1/2
|
Product Material
Stainless Steel
|
Product Width
1.40
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
EPDM
|
Sub Brand
Hansen
|
Supplier Part Number
ML4DBP50F292
|
Valve Type
2 way
|
Product Weight
0.48 lbs
|
