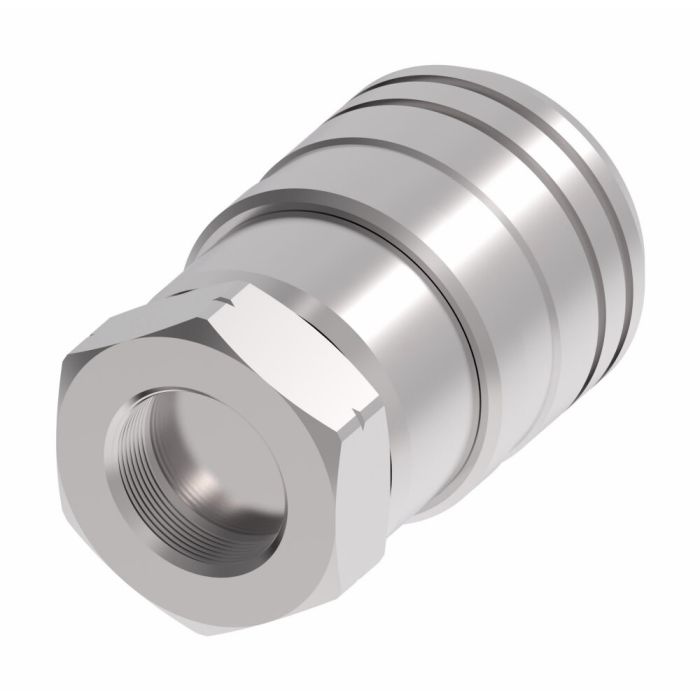

Designed for demanding fluid transfer applications, the Danfoss / Eaton Hansen MLDB Series Quick Disconnect Coupling Socket is a female half, flat-face coupling built from stainless steel with EPDM seals. The flat-face internal design minimizes fluid loss and air inclusion at connection and disconnection, a key advantage in chemical, pharmaceutical, food processing, and petrochemical environments.
This coupling features a push-to-connect end with a 1/2" NPT port and a sleeve lock safety mechanism, supporting flow rates up to 19 gallons per minute and a minimum operating temperature of -40°F. The tool-free quick connect and disconnect design exceeds ISO 16028 operating pressure standards. Corrosive environment suitability is reinforced by the stainless steel body and EPDM seal selection, making this fitting well suited to chemical and electrical cooling applications as well.
SKU: ML4DBS50F292
Supplier Part Number (MPN): ML4DBS50F292
|
Alternate Part Numbers
MINO-00015X14378
|
Application
Process/fluid transfer, Cooling, Corrosive environments, Chemicals/petrochemicals, Pharmaceuticals, Food Processing, Electrical
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
19 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/2
|
Product Material
Stainless Steel
|
Product Width
1.50
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
EPDM
|
Sub Brand
Hansen
|
Supplier Part Number
ML4DBS50F292
|
Valve Type
2 way
|
Product Weight
0.72 lbs
|
