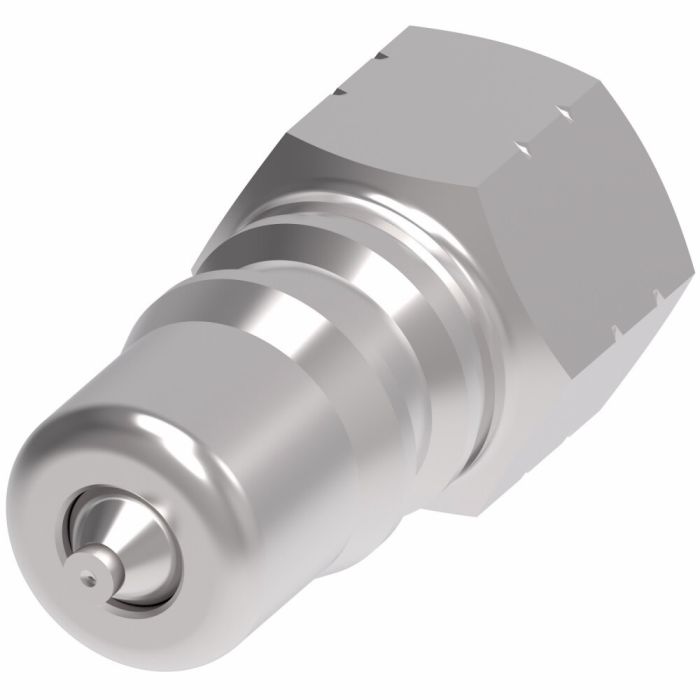

Constructed from 316 stainless steel with Buna-N seals, this male half quick disconnect coupling is built for demanding fluid transfer applications across agriculture, construction, oil and gas, aerospace, and a broad range of industrial environments. The Danfoss / Eaton Hansen Cplng SS belongs to the Hansen HK Series and carries ISO 7241-1 Series B certification, with performance that exceeds ISO 16028 operating pressure requirements.
The push-to-connect male end pairs with a 1/2" BSPP female port and uses a ball lock internal connection mechanism for reliable, tool-free coupling and release. Rated for flow up to 12 gallons per minute and operational down to -40°F, this two-way valve design is well-suited for hydraulic tools, chemical handling, military and rescue equipment, HVAC systems, food and beverage lines, and transportation applications where a secure, leak-resistant connection is critical.
SKU: ML4KP26BS
Supplier Part Number (MPN): ML4KP26BS
|
Alternate Part Numbers
MINO-00015X14393
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
12 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
316 Stainless Steel
|
Product Width
1.30
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
ML4KP26BS
|
Valve Type
2 way
|
Product Weight
0.12 lbs
|
