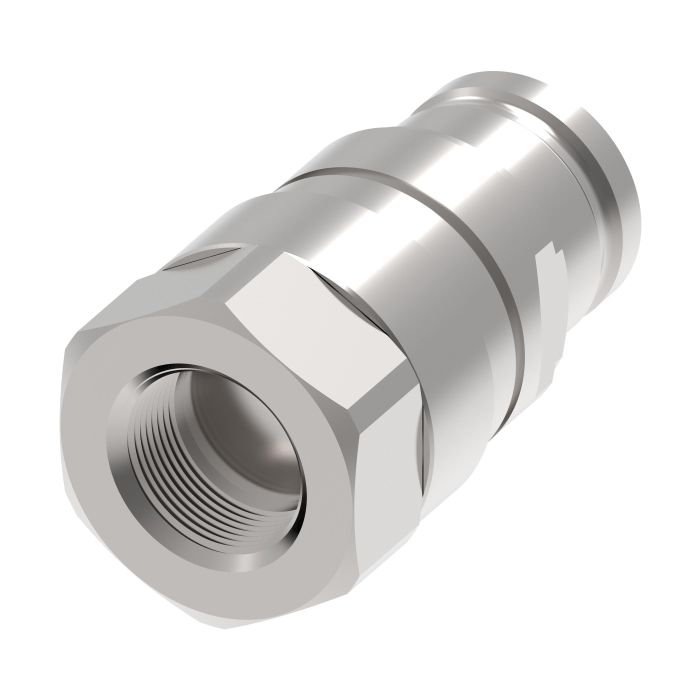

Designed for demanding fluid transfer in corrosive, chemical, and food processing environments, the Danfoss / Eaton QD Male 6DB NPT INOX + F is a stainless steel male half quick disconnect coupling built for reliable push-to-connect performance. The flat face internal connection type minimizes fluid loss and contamination at disconnect, while the sleeve lock mechanism provides secure engagement without requiring special tools.
Rated for flows up to 32 gallons per minute, this 3/4" port coupling features a 3/4 NPT female end and carries an FKM seal suited to a broad range of fluid types, including chemicals and petrochemicals. Compliance with the European Pressure Equipment Directive (PED) 97/23/EC Article 3.3 supports use in regulated process applications. The two-way valve design and stainless steel construction make it a practical choice for pharmaceutical, food processing, electrical cooling, and other environments where corrosion resistance and cleanliness are priorities. Rated for service down to -4°F, it performs in low-temperature process conditions as well.
SKU: ML6DBP75F
Supplier Part Number (MPN): ML6DBP75F
|
Alternate Part Numbers
MINO-00015X14400
|
Application
Process/fluid transfer, Cooling, Corrosive environments, Chemicals/petrochemicals, Pharmaceuticals, Food Processing, Electrical
|
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
32 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
3/4
|
Product Material
Stainless Steel
|
Product Width
1.83
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
ML6DBP75F
|
Valve Type
2 way
|
Product Weight
0.90 lbs
|
