Morfs X Male Din Tube Or Port

Description & Features

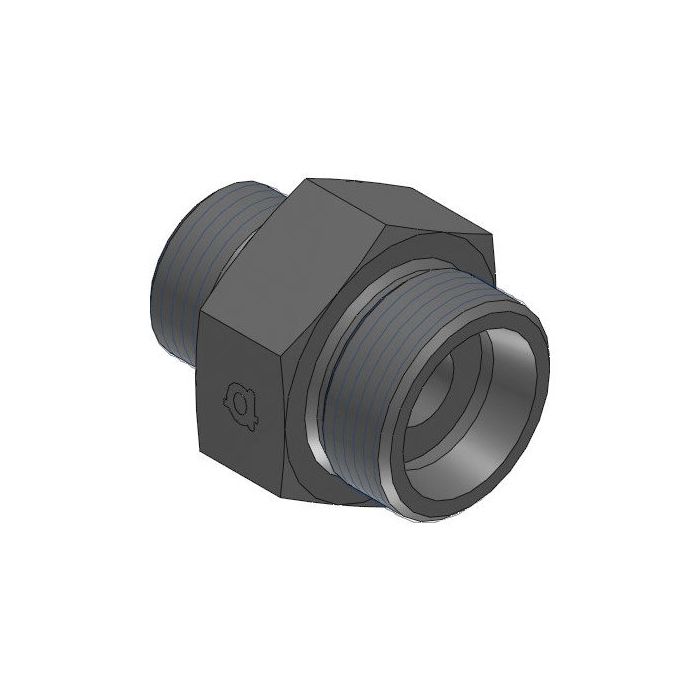

This straight steel adapter connects an ORFS (O-ring face seal) fitting to a DIN (Deutsches Institut für Normung) tube fitting. It features a 3/8" male ORFS end with an 11/16 - 16 UN callout and a male DIN tube end with an M18 X 1.5 callout and L12 size.

The Adaptall Morfs X Male Din Tube Or Port is designed for hydraulic applications requiring a secure and leak-free connection between these two fitting types. The side 1 channel width is 24mm, and the Adaptall L Length is 34.3mm.

SKU: 6605-06-L12-18

Supplier Part Number (MPN): 6605-06-L12-18

Specifications

Connection Size 1 3/8 in	Connection Size 2 12 mm	Connection Type Male Metric, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Metric DIN Tube	Dimension Standards DIN 2353, SAE J1453	Dimensions 33 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 6605 Series	Thread Size 11/16-16 x M18x1.5

Product Questions & Answers (2)

Question by: Glen H on Mar 14, 2026, 7:16 AM

Will this here fitting hold up okay in a hydraulic setup on my backhoe?

Answer by: Customer Support on Mar 15, 2026, 1:53 PM

Designed for hydraulic applications, this adapter ensures a secure and leak-free connection between an ORFS fitting and a DIN tube fitting.

Question by: Judy C on Feb 11, 2026, 6:53 AM

got a hose end that’s 3/8 ORFS, will this screw right onto it and then go into an M18 x 1.5 DIN tube port?

Answer by: Customer Support on Feb 13, 2026, 8:08 AM

For tying those two standards together, it matches a 3/8 inch male ORFS end (11/16-16 UN) on one side and a male DIN tube end called out as M18 x 1.5, size L12, on the other. It’s a straight steel adapter meant to make that ORFS to DIN tube connection.
