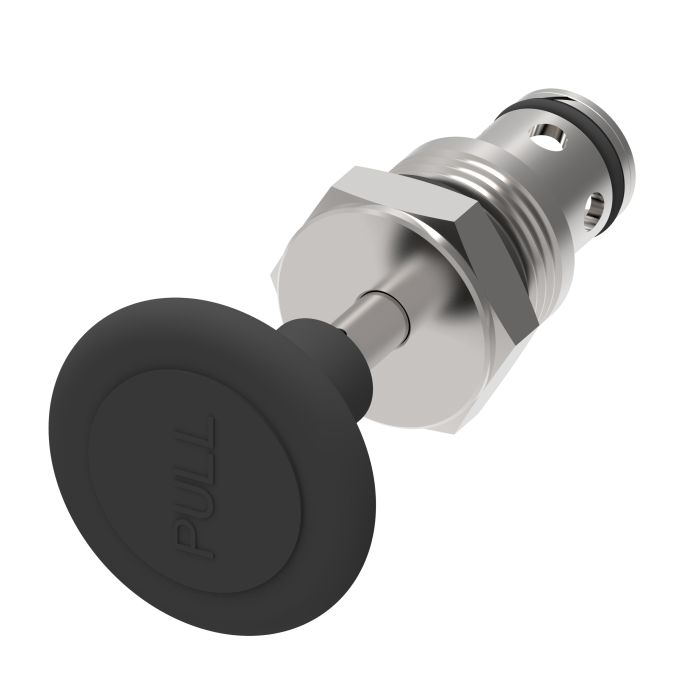

MPV1-10 Series 2-Way, 2-Position Pull-To-Open Manual Catridge Valve, To 3000 PSI & 12 GPM, Buna-N Seals

Ask A Question

Description & Features

The MPV1-10 Series 2-Way 2-Position Pull-To-Open Manual Cartridge Valve To 3000 PSI & 12 GPM Buna-N Seals is engineered for robust performance in mobile and industrial applications including harvesters and refuse haulers. With a maximum operating pressure of 3000 PSI and a flow rating of 12 GPM this valve provides reliable and efficient control of fluid streams.

Its screw-in cartridge installation and poppet style design ensure compactness and flexibility. It leverages Buna-N seals for optimal performance and durability within a temperature range of -40F to 248F.

This directional control valve features two valve ports and a cartridge style that requires a machined cavity or housing for installation. The pull-to-open knob mechanism makes it suitable for on-off control.

The MPV1-10 Series uses ISO 4406 Cleanliness Level 18/16/13 recommended filtration achieving a leakage rate of 5 drops/min. maximum at 210 bar.

Segment Code: seg_code_a

Supplier Part Number: 565589

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 265 L/min (70 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Housing
None
Installation Type
Screw-in Cartridge
Leakage
5 drops/min. maximum @ 210 bar
Lever Position
0° Angle Position
Number of Housing Ports
2
Number of Valve Ports
2
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
Poppet
Supplier Part Number
565589
Alternate Part Numbers
Alternate Part Number C1BT36, Alternate Part Number MPV110K0
Product Weight
0.25 lbs

Related Documents

Similar Products

Model Number Part Number Housing Seal Material Price Action
MPV1-10 Series 2-Way, 2-Position Pull-To-Open Manual Catridge Valve, To 3000 PSI & 12 GPM, Buna-N Seals

MPV1-10-K-0 MPV1-10 Series Cartridge Valve

565589

None

Buna-N

Product Questions & Answers (1)

Question by: Ronnie W on Sep 22, 2025, 7:17 AM
pull-to-open means what exactly for day to day use, like does it stay open on its own or do you have to keep holding it?
Answer by: Customer Support on Sep 24, 2025, 6:40 AM
Once you pull the knob, the valve opens and stays open as long as that knob is pulled out. Let go of it and the spring brings it right back to closed. So your hands are free while it's open, but the moment you release, flow stops. It's a simple on-off setup, one fluid stream at a time, which is exactly what makes it practical on equipment like harvesters or refuse haulers where you want quick, reliable shutoff without any extra steps.
