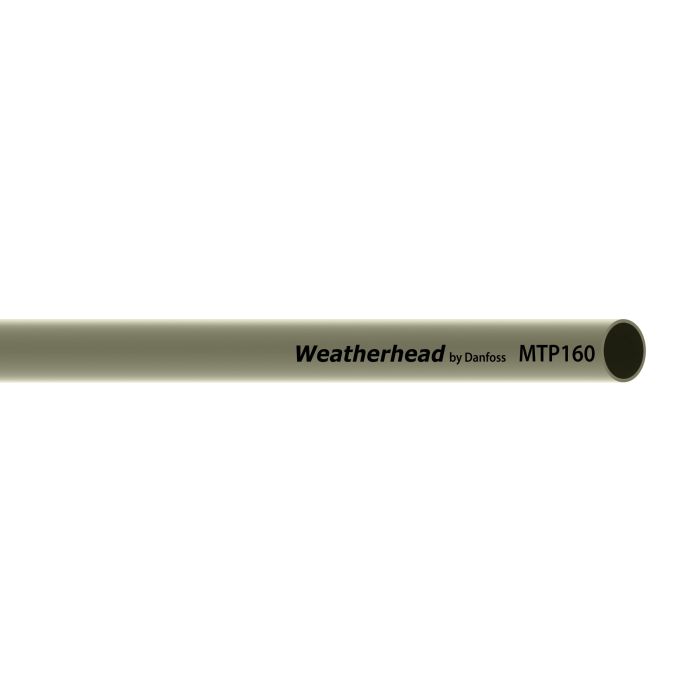

main product photo

MTP160 tubing

Ask A Question

Description & Features

Constructed with premium abrasion resistance, the Eaton Aeroquip MTP160 tubing is engineered for durability in demanding environments. Its natural color and conductive properties make it ideal for applications where resistance to most chemicals and hydrocarbons is crucial. Featuring a robust polyamide cover and reinforcement, this extruded tubing offers outstanding UV resistance, ensuring it lasts longer than competing products. The MTP160 tubing accommodates a minimum bend radius of 3.5 inches, making it adaptable for various configurations, while its push-to-connect fittings simplify installation.

SKU: MTP16012NA-100

Supplier Part Number (MPN): MTP16012NA-100

Alternate Part Numbers: C1KM80

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number C1KM80, Alternate Part Number MINO-00015X14459
Application
Resistant to most chemicals and hydrocarbons.
Color
Natural
Conductivity
30
Construction
Extruded
Cover Material
Polyamide
Dash Size
-12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Features
UV resistance last longer than all competitors|Hundreds of styles to choose from|Rugged enough to stand up to the toughest applications
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
3.50
Minimum Bend Radius
3.5
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.47
Qualified Hose Fittings
Push to Connect
Reinforcement Material
Polyamide
Sub Brand
Weatherhead
Supplier Part Number
MTP16012NA-100
Tube Material
Polyamide
Product Weight
0.13 lbs

Related Documents

Product Questions & Answers (3)

Question by: Debbie E on May 11, 2025, 1:55 PM
Does this tubing hold up alright when it's getting beat on regular, like in a setup where it's rubbing against other components pretty much all day?
Answer by: Customer Support on May 13, 2025, 6:31 AM
Premium abrasion resistance is one of the stronger selling points on this tubing. The polyamide construction handles rough contact and tough working conditions better than a lot of comparable products out there. It's built for demanding environments, so regular friction from nearby components is well within what it's rated to handle.
Question by: Jimmy A on Apr 4, 2026, 3:04 PM
What's the smallest circle this tubing can bend around without kinking?
Answer by: Customer Support on Apr 6, 2026, 2:03 PM
The minimum bend radius for the MTP160 tubing is 3.5 inches.
Question by: Randy R on Apr 14, 2025, 11:48 AM
got a tight spot to route this line, how sharp can i bend the MTP160 without kinking it
Answer by: Customer Support on Apr 16, 2025, 6:32 AM
Minimum bend radius on the MTP160 tubing is 3.5 inches, so you will want to keep your routing at or above that radius when you lay it in.
