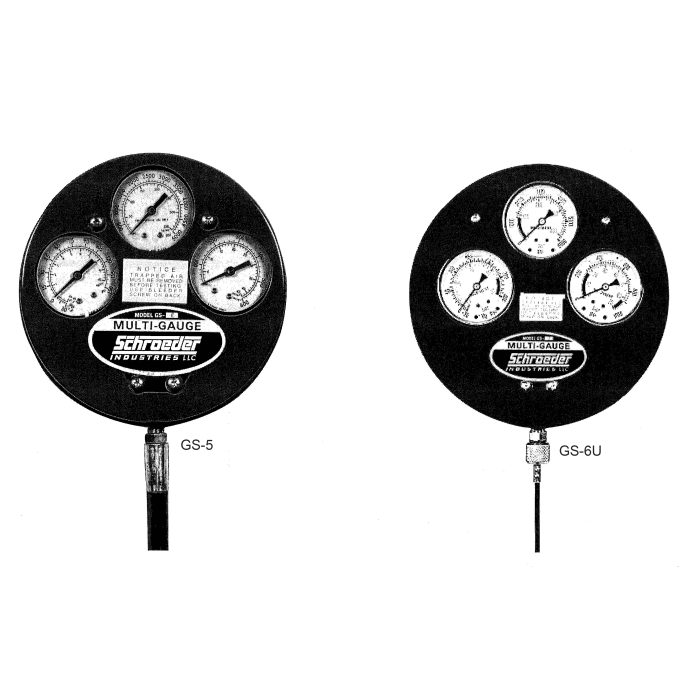

Multi-Gauge, Case: 6.3, Gauge: 1.5 Inch Diameter, Gauge 1: 0 to 600 psi, Gauge 2: 0 to 5000 psi, Vacuum: 30 in Hg to 150 psi

Description & Features

Designed for routine hydraulic maintenance, this Schroeder Industries Multi-Gauge consolidates three pressure ranges and one vacuum range into a single compact enclosure. A single hook-up connects all three gauges simultaneously, covering vacuum to 150 psi, 0–600 psi, and 0–5000 psi, addressing the majority of hydraulic, transmission, and converter system testing needs without switching instruments.

A built-in gauge protector automatically shields the low and medium pressure gauges from high-pressure spikes, eliminating the need to identify system pressure before connecting. The dust- and moisture-resistant steel case measures 6.3 inches and houses 1.5-inch diameter gauges. A rubber bumper provides shock protection, and a rear hanger allows for convenient storage or mounting between uses.

SKU: GS-5

Supplier Part Number (MPN): 7630379

Alternate Part Numbers: C1LZ84

Specifications

Diameter (in) Case: 6.3, Gauge: 1.5	Brand Schroeder Industries	Brand Schroeder Industries	Pack Size 1.00	UOM EA	Pressure Range (psi) Gauge 1: 0 to 600 psi, Gauge 2: 0 to 5000 psi, Vacuum: 30 in Hg to 150 psi	Supplier Part Number 7630379	Alternate Part Numbers Alternate Part Number C1LZ84	Product Weight 3.25 lbs

Similar Products

Model Number	Diameter (in)	Pressure Range (psi)	Price	Action
GS-5 Multi-Gauge	Case: 6.3, Gauge: 1.5	Gauge 1: 0 to 600 psi, Gauge 2: 0 to 5000 psi, Vacuum: 30 in Hg to 150 psi

Product Questions & Answers (2)

Question by: Randy C on Feb 27, 2026, 11:02 AM

got a hydraulic setup that swings from vacuum to pressure depending on what it’s doing. would this gauge cover that without me swapping tools around

Answer by: Customer Support on Feb 28, 2026, 7:19 PM

For routine hydraulic maintenance, it gives you four readings in one case: vacuum from 30 in Hg up to 150 psi, plus 0 to 600 psi and 0 to 5000 psi. One hook-up connects all three gauges at the same time, so you can check vacuum, low pressure, and high pressure without changing instruments.

Question by: Kurt F on Oct 16, 2025, 4:48 PM

Does this thing actually protect the low-pressure gauge if you hook it up to a high-pressure system without knowin what the pressure is ahead of time?

Answer by: Customer Support on Oct 17, 2025, 7:54 PM

Built into the unit is an automatic gauge protector that shields the low and medium pressure gauges from high-pressure spikes. So if you connect to a 2500 psi system while the low-range gauge is still live, it won't get damaged. You don't have to figure out system pressure before you hook up, which is the whole point of that feature.
