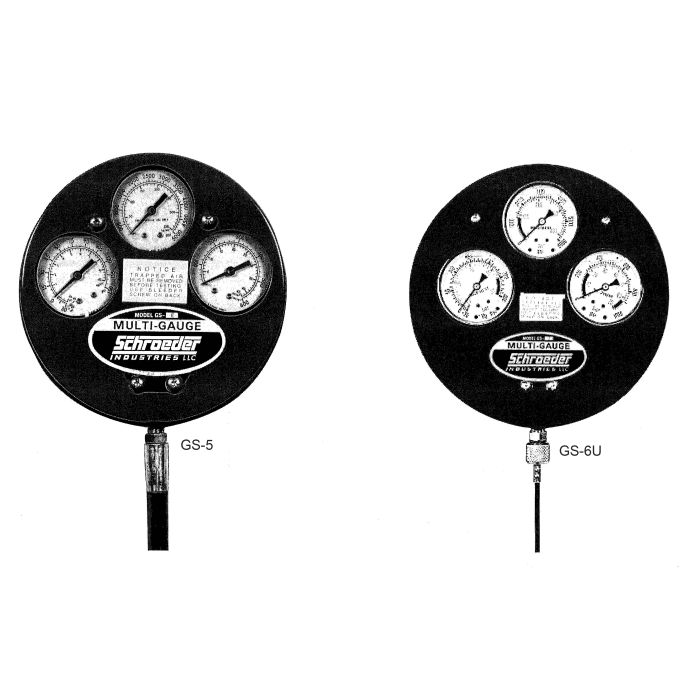

Multi-Gauge, 30 in Hg - 150 PSI, 0 - 600 PSI, 0 - 5000 PSI

Description & Features

Construction	Simple yet rugged construction; The dust and moisture proof steel case is provided with a rubber bumper for shock protection. A hanger is also provided on the case back for the user’s convenience.
Features	The Schroeder Multi-Gauge provides multiple pressure readings for hydraulic, transmission, and converter systems all in one handy, compact enclosure. While one hook-up connects all three gauges, the built-in gauge protector automatically protects the low and medium pressure gauges from high pressures.
Measuring Range	Saves time;The three pressure ranges and one vacuum range provided in one case meet most routine hydraulic maintenance requirements.
Pressure	Protects against overpressurization; The 150 psi gauge can not be damaged when a 2500 psi system is being checked. This design feature eliminates the need to know the pressure before testing.

Model Number	Diameter (in)	Pressure Range (psi)	Price	Action
GS-5 Multi-Gauge	Case: 6.3, Gauge: 1.5	Gauge 1: 0 to 600 psi, Gauge 2: 0 to 5000 psi, Vacuum: 30 in Hg to 150 psi
