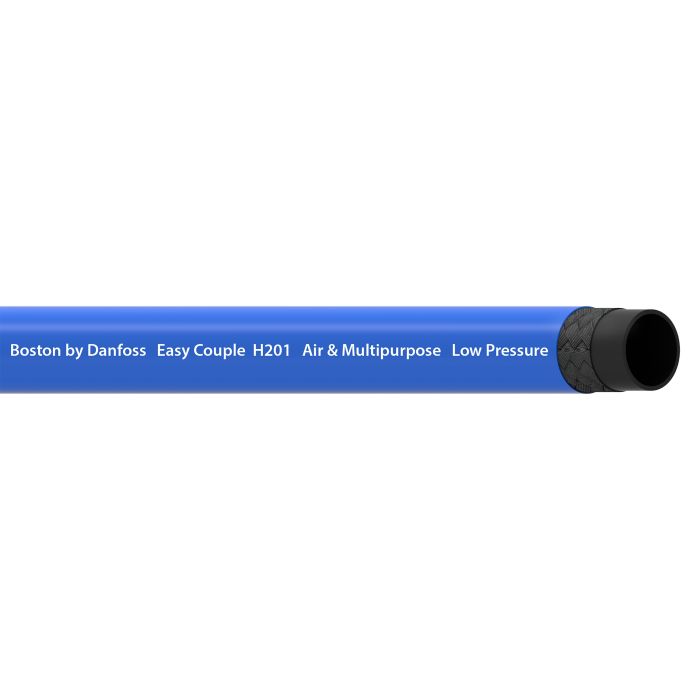

Easy Couple Air & Multipurpose Socketless Hose, Blue, 0.25 Inch ID, Up To 250.00 PSI

Ask A Question

Description & Features

The Easy Couple Air & Multipurpose Socketless Hose exhibits superior versatility designed for both air and multipurpose applications. Its 0.25-inch internal diameter accompanied by a maximum operating pressure of 250 PSI ensures efficient functionality in demanding environments.

Constructed with RMA Class A vinyl nitrile tube this hose boasts exceptional oil resistance. Reinforced with a single-braid textile and a robust neoprene cover it offers reliable performance even under rigorous conditions. Available in blue gray red yellow and green the vinyl nitrile cover enhances durability.

This hose is suitable for conveying air water oils and other fluids and is ideal for use in pneumatic tools low-pressure hydraulics and transferring lubricated air to valves and cylinders. Please review specific application requirements and limitations.

With a minimum bend radius of 3 inches and a vacuum service capacity of 28 inches Hg it delivers flexibility and resilience. The temperature range spans from -40F to 160F for air applications -40F to 185F for water applications and up to 260F for fuel and lubrication oil.

The hose is compatible with SOCKETLESS fittings shank type and universal type fittings which can be secured using pinch clamps preformed clamps or bolt clamps.

MPN: H20104BU-250R

Supplier Part Number: H20104BU-250R

Specifications

Color
Blue
Hose I.D.
0.25
Hose O.D.
0.50
Maximum Operating Pressure
250
Minimum Bend Radius
3
Minimum Bend Radius
3
Reel Qty (ft)
250
Supplier Part Number
H20104BU-250R
Vacuum Service
28
Product Weight
22.50 lbs

Related Documents

Product Questions & Answers (3)

Question by: Neil C on Nov 26, 2025, 4:36 PM
got a little 1/4 inch air line on my die grinder, is this hose ok for that kind of everyday shop use
Answer by: Customer Support on Nov 28, 2025, 6:45 AM
For running air tools and general multipurpose service, it fits the bill. It is a 0.25 inch ID air and multipurpose hose rated up to 250 PSI, and it is commonly used with pneumatic tools and for transferring lubricated air to valves and cylinders.
Question by: Cindy H on Jul 14, 2025, 4:59 PM
this hose rated for oil or just air? got some lubricated air lines running to pneumatic cylinders and want to make sure it won't break down on me
Answer by: Customer Support on Jul 16, 2025, 12:08 PM
Lubricated air lines are actually one of the main uses for this hose. The vinyl nitrile tube construction gives it solid oil resistance, and it's specifically listed for transferring lubricated air to valves and cylinders. It also handles straight air, water, and oils, so it covers a good range of what most shops run through lines like that.
Question by: Warren M on Sep 21, 2025, 5:14 PM
Will this hose hold up if I'm running oil through it regularly?
Answer by: Customer Support on Sep 23, 2025, 6:48 AM
Yes, this hose features an RMA Class A vinyl nitrile tube, which gives it good oil resistance for those kinds of applications.
