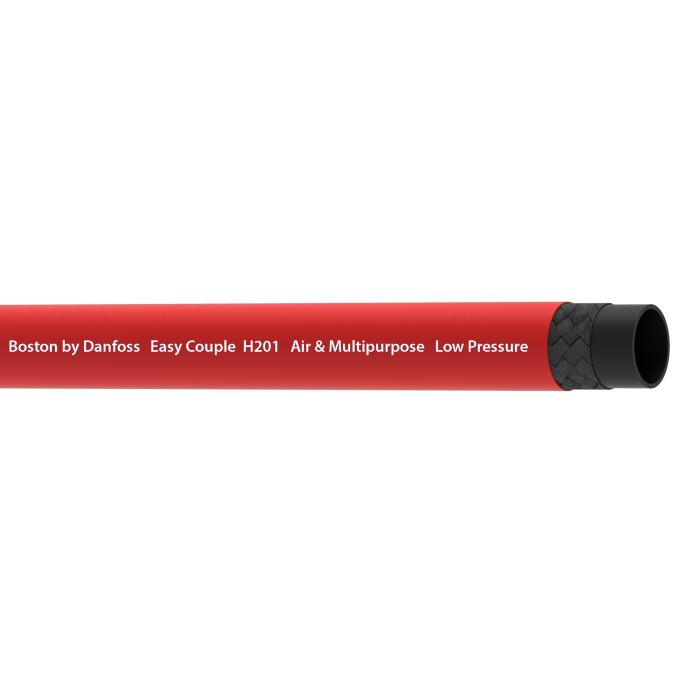

Easy Couple Air & Multipurpose Socketless Hose, Red, 0.25 Inch ID, Up To 250.00 PSI

This red Easy Couple Air & Multipurpose Socketless Hose is suitable for pneumatic tools on production lines and for conveying air, water, and oils.

Featuring a RMA Class A vinyl nitrile tube for excellent oil resistance, it also has a 1-braid textile reinforcement and a vinyl nitrile cover. It is ideal for low-pressure hydraulic applications (NOT for impulse applications). Review all application requirements and limitations.

This hose has a 0.25 inch inner diameter and a 0.5 inch outer diameter, with a maximum operating pressure of 250 PSI and a minimum bend radius of 3 inches. The temperature range for air applications is -40°F to 160°F; for water, it's -40°F to 185°F; and for fuel and lubrication oil, it's -40°F to 260°F. It supports vacuum service up to 250.

Suggested fittings include shank type (brass, steel, stainless steel) and universal type, attached with pinch clamps, preformed clamps, or bolt clamps.

SKU: H20104RD-250R

Supplier Part Number (MPN): H20104RD-250R

Alternate Part Numbers: C1FU47, IGH20104RD-250R
