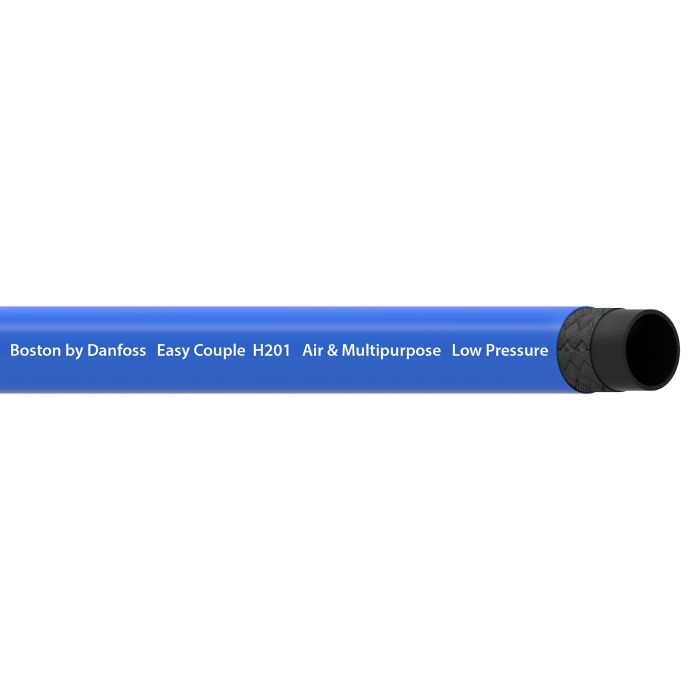

Easy Couple Air & Multipurpose Socketless Hose, Blue, 0.38 Inch ID, Up To 250.00 PSI

Ask A Question

Description & Features

Engineered for diverse applications the Easy Couple Air & Multipurpose Socketless Hose features a robust design ideal for conveying air water oils and other fluids. This versatile hose is suitable for pneumatic tools on production lines transfer of lubricated air to valves and cylinders and low-pressure hydraulics (excluding impulse applications).

Constructed with RMA Class A vinyl nitrile tube it offers superior oil resistance. Reinforced with a single braid textile and encased in a durable blue vinyl nitrile cover it ensures longevity even under demanding conditions. The hose has a maximum operating pressure of 250 PSI and a minimum bend radius of 3 inches making it versatile for various configurations.

The hose performs optimally across a wide range of temperatures: from -40F to 160F for air -40F to 185F for water and -40F to 260F for fuel and lubrication oil. Its ink print branding and vibrant color options including blue enhance visibility and identification.

Fitting attachments are straightforward with options including SOCKETLESS fittings for a secure fit without clamps or shank and universal type fittings attached using pinch clamps preformed clamps or bolt clamps. With an internal diameter of 0.38 inches and external diameter of 0.656 inches this hose is designed for reliability and efficiency in various industrial applications.

MPN: H20106BU-250R

Supplier Part Number: H20106BU-250R

Specifications

Color
Blue
Hose I.D.
0.38
Hose O.D.
0.66
Maximum Operating Pressure
250
Minimum Bend Radius
3
Minimum Bend Radius
3
Reel Qty (ft)
250
Supplier Part Number
H20106BU-250R
Vacuum Service
28
Product Weight
32.50 lbs

Related Documents

Product Questions & Answers (2)

Question by: Earl G on Apr 24, 2025, 2:30 PM
got a 3/8 air line setup in the shop. is this hose ok for running pneumatic tools all day
Answer by: Customer Support on Apr 25, 2025, 5:12 PM
For production-line air and shop air use, it’s built for pneumatic tools and for transferring lubricated air to valves and cylinders. The working pressure is rated up to 250 PSI, and for air service the temperature range is -40F to 160F.
Question by: Duane B on Jan 20, 2026, 6:50 AM
hose says it works for low-pressure hydraulics but also air and water -- what exactly is this thing best suited for day to day?
Answer by: Customer Support on Jan 22, 2026, 6:19 AM
Pneumatic tools on production lines are where this hose really earns its keep. It moves air, water, oils, and other fluids without complaint, and it handles lubricated air delivery to valves and cylinders well. For low-pressure hydraulic work it gets the job done too, just not in impulse applications. The vinyl nitrile construction gives it solid oil resistance, so it holds up in shop environments where things get messy.
