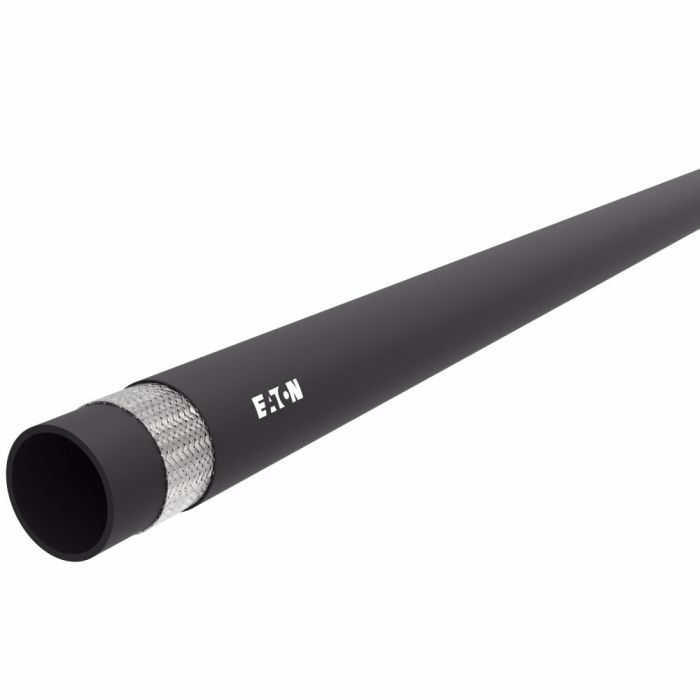

Easy Couple Air & Multipurpose Socketless Hose, Black, 0.50 Inch ID, Up To 250.00 PSI

Ask A Question

Description & Features

The Easy Couple Air & Multipurpose Socketless Hose is designed for air water and oil conveyance in various industrial applications. Featuring a 0.50-inch ID and a robust maximum operating pressure of 250 PSI it is ideal for pneumatic tools and low-pressure hydraulics. Constructed with an RMA Class A vinyl nitrile tube that ensures excellent oil resistance this hose includes one-braid textile reinforcement for added durability. The black neoprene cover meets MSHA 2G-13 standards. Its minimum bend radius of 5 inches allows for flexibility in installation and use. For added versatility the hose is compatible with SOCKETLESS fittings shank type fittings and universal type fittings. The fitting attachments can be secured using pinch clamps Band-It Jr preformed clamps or bolt clamps.

Supplier Part Number: H20108BK-250R

The temperature range for air applications spans from -40F to 160F water applications from -40F to 185F and fuel and lubrication oil from -40F to 260F. This makes it a versatile choice for diverse industrial environments.

MPN: C1FU52

Specifications

Brand
Boston® by Danfoss
Abrasion Resistance
Standard
Conditional Temp Range
-40 to 212 deg F Air
Cover Material
Chloroprene
Dash Size
08
For Use With
Socketless, B Series and Push-On and Quick-Disconnect Hose Fittings
grp Fitting Attachment Suggestions
SOCKETLESS™ Fittings (No Clamp Required), Shank or Universal Type Fittings Attached with Pinch Clamps, Preformed Clamps or Bolt Clamps
grp Fitting Attachments
Pinch Clamps, Band-It® Jr. Preformed Clamps, Bolt Clamps
grp Fittings
Shank Type (Brass, Steel, Stainless Steel), Universal Type
Hose Color
Black
Hose Type
Conductive, Low-Pressure
Inside Diameter
1/2 in
Lay Line Style
Inkjet
Nominal Size
1/2 in
Package Form
Reel
Reinforcement
1-Textile Braided Fabric
Resistance Properties
Abrasion
Segment Code
A
Series
H201 Easy Couple Series
Tube Material
Nitrile

Product Questions & Answers (2)

Question by: Scott F on Jan 19, 2026, 10:59 AM
Can I use this for gasoline?
Answer by: Customer Support on Jan 21, 2026, 6:23 AM
This hose handles fuel and lubrication oil in a temperature range from -40F to 260F. Just make sure that the specific gasoline you're using falls within that range for safe operation.
Question by: Floyd G on Nov 10, 2025, 4:38 PM
what kind of fittings does this hose work with? got a bunch of shank style ones on hand already and don't wanna buy new stuff if I don't have to
Answer by: Customer Support on Nov 12, 2025, 11:02 AM
Shank type fittings work just fine with this hose. It's also compatible with socketless fittings and universal type fittings, so there's a good chance what you've already got on the shelf will do the job. For securing the connection, you can use pinch clamps, Band-It Jr preformed clamps, or bolt clamps depending on what you have available.
