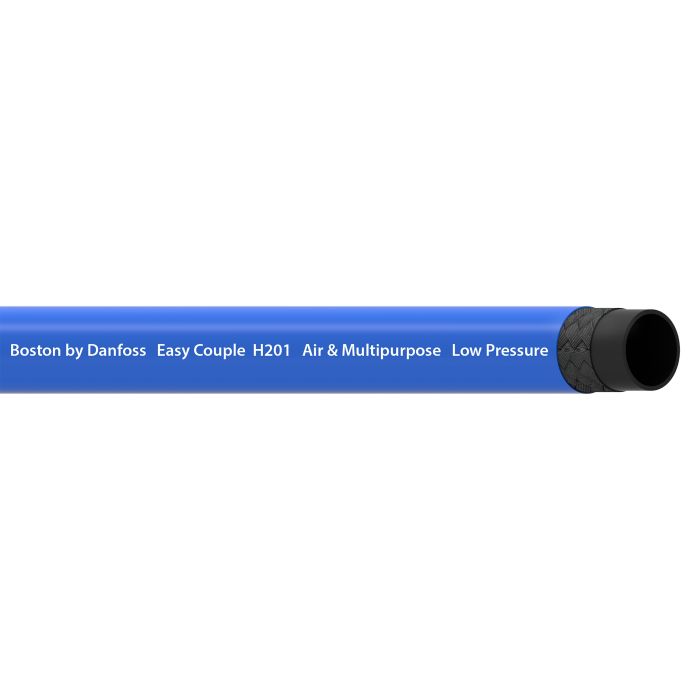

main product photo

Easy Couple Air & Multipurpose Socketless Hose, Blue, 0.50 Inch ID, Up To 250.00 PSI

Ask A Question

Description & Features

The Easy Couple Air & Multipurpose Socketless Hose Blue 0.50 Inch ID Up To 250.00 PSI is a highly versatile industrial hose designed for a variety of applications including pneumatic tools air conveyance and low-pressure hydraulics. Featuring a robust RMA Class A vinyl nitrile tube this hose offers excellent oil resistance and durability.

Constructed with 1-braid textile reinforcement and a neoprene cover this hose can withstand air applications ranging from -40F to 160F and water applications up to 185F. The vibrant blue vinyl nitrile cover enhances its visibility and adds an extra layer of protection.

Eaton Socketless fittings are recommended for easy clamp-free attachment. Additionally shank or universal type fittings can be securely fastened using pinch clamps preformed clamps or bolt clamps.

The hose has a maximum operating pressure of 250 PSI a minimum bend radius of 5 inches and is suitable for vacuum service up to 28 inches Hg.

Supplier Part Number: H20108BU-250R

MPN: C1FU53

Specifications

Color
Blue
Hose I.D.
0.50
Hose O.D.
0.75
Maximum Operating Pressure
250
Minimum Bend Radius
5
Minimum Bend Radius
5
Reel Qty (ft)
250
Supplier Part Number
H20108BU-250R
Vacuum Service
28
Product Weight
37.50 lbs

Related Documents

Product Questions & Answers (1)

Question by: Kirk S on Jul 20, 2025, 8:05 AM
got a 1/2 inch air line for shop tools, will this blue socketless hose handle that kind of work?
Answer by: Customer Support on Jul 21, 2025, 6:27 PM
For air tool and general air conveyance jobs, it’s a good fit. It’s an air and multipurpose socketless hose with a 0.50 inch ID, rated up to 250 PSI, and it’s built for air service from -40F to 160F with a 1-braid textile reinforcement and a neoprene cover.
