08IMX08MJ

Description & Features

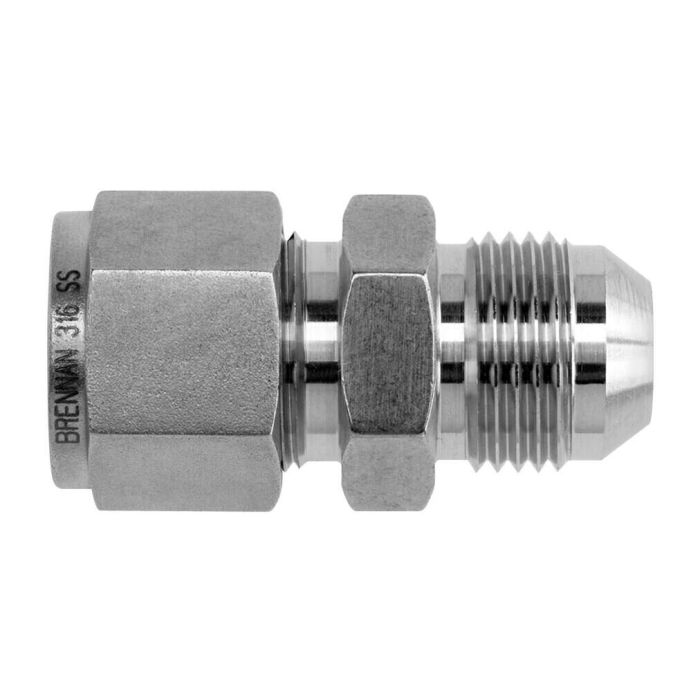

This 08IMX08MJ adapter fitting is part of the Brennan N2402 series. It features a 1/2 inch tube OD and a 3/4-16 S thread. The A dimension is 46.0 mm, and the C dimension is 21.8 mm.

This adapter has a D dimension of 22.9 mm, an E minimum dimension of 9.9 mm, an F across flats dimension of 13/16 inch, and a G across flats dimension of 7/8 inch.

SKU: N2402-08-08-SS

Supplier Part Number (MPN): N2402-08-08-SS

Specifications

Brand
BRENNAN
a Dimensions
46 mm
c Dimensions
21.8 mm
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Compression
Connection Type 1
Compression
Connection Type 2
Compression
d Dimensions
22.9 mm
Dimensions
1.91 in L
e Min Dimensions
9.9 mm
FAF Dimensions
13/16 in
Fitting Type
Adapter
gaf Dimensions
7/8 in
Hex Size
0.81 in
Material
Stainless Steel
Material Construction
316L Stainless Steel
Series
N2402 Series
Thread Size
3/4-20

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
BRENNAN 04IN-04MJ STNLS

N2402-04-04-SS

1/4 in

1/4 in

7/16-20

Product Questions & Answers (1)

Question by: Harold R on Dec 10, 2025, 9:22 AM
What size tubing does this adapter fit? Just want to make sure it'll work with my setup.
Answer by: Customer Support on Dec 12, 2025, 6:51 AM
This adapter fitting works with 1/2 inch OD tubing, according to the specs.
