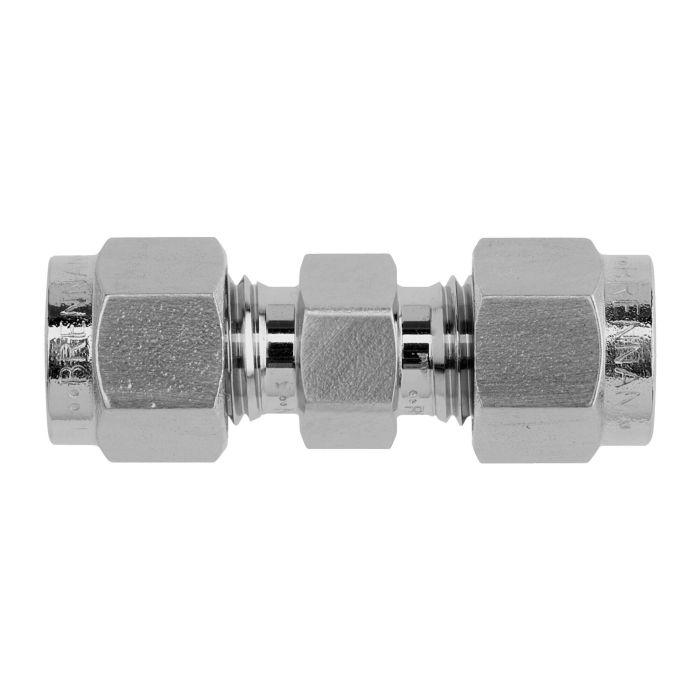

06IN-06IN STRAIGHT UNION STNLS

Manufactured by Brennan Industries, this 3/8 in. tube OD straight union fitting is constructed from stainless steel, making it well suited for hydraulic and fluid power lines where corrosion resistance is a priority. The inline configuration connects two tube ends in a straight run without altering flow direction.

The 06IN-06IN Straight Union Stnls carries an overall length of 46.7 mm, with a hex flat-to-flat measurement of 16.0 mm on one end and 17.5 mm on the other. Tube bore depth measures 19.3 mm, with a 17.8 mm body diameter and a minimum end clearance of 7.1 mm. Part of Brennan's N2403 series, this fitting is a reliable choice for stainless steel tube line assemblies in demanding industrial environments.

SKU: N2403-06-06-SS

Supplier Part Number (MPN): N2403-06-06-SS

Alternate Part Numbers: SS-N2403-06-06
