04IN-04MNPT STNLS

Description & Features

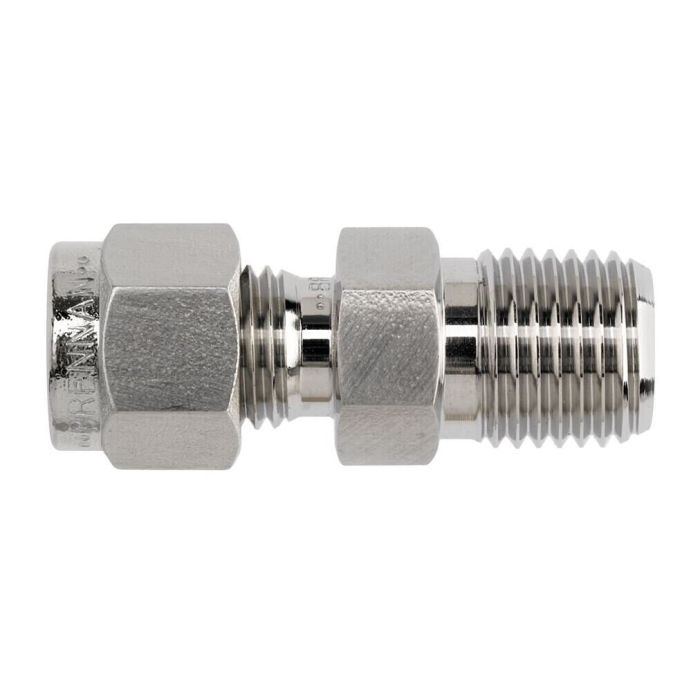

This stainless steel adapter features a 1/4 inch tube OD and a 1/4 inch NPT male connection. The 04IN-04MNPT STNLS adapter is part of the N2404 series from Brennan Industries.

Key dimensions include a 37.8 mm A dimension, 14.3 mm B dimension, 17.8 mm C dimension, 15.3 mm D dimension, minimum 4.8 mm E dimension, and 14 mm F and G A flats.

SKU: N2404-04-04-SS

Supplier Part Number (MPN): N2404-04-04-SS

Specifications

a Dimensions 37.8 mm	b Dimensions 14.3 mm	c Dimensions 17.8 mm	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male JIC, MNPT	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 30 deg NPTF	d Dimensions 15.3 mm	Dimensions 1.49 in L	e Min Dimensions 4.8 mm	FAF Dimensions 14 mm	Fitting Type Adapter	gaf Dimensions 14 mm	Hex Size 0.563 in	Material Stainless Steel	Material Construction 316L Stainless Steel	Series N2404 Series	Thread Size 7/16-2 x 1/4-18

Product Questions & Answers (1)

Question by: Gene R on Aug 25, 2025, 9:13 AM

Will this fitting work for connecting a 1/4 inch OD tube to a 1/4 inch NPT male port?

Answer by: Customer Support on Aug 26, 2025, 4:36 PM

This stainless steel adapter is designed specifically for that purpose, connecting a 1/4 inch OD tube to a 1/4 inch NPT male connection.
