BRENNAN 5/16 TUBE X TUBE ELBOW SS

Description & Features

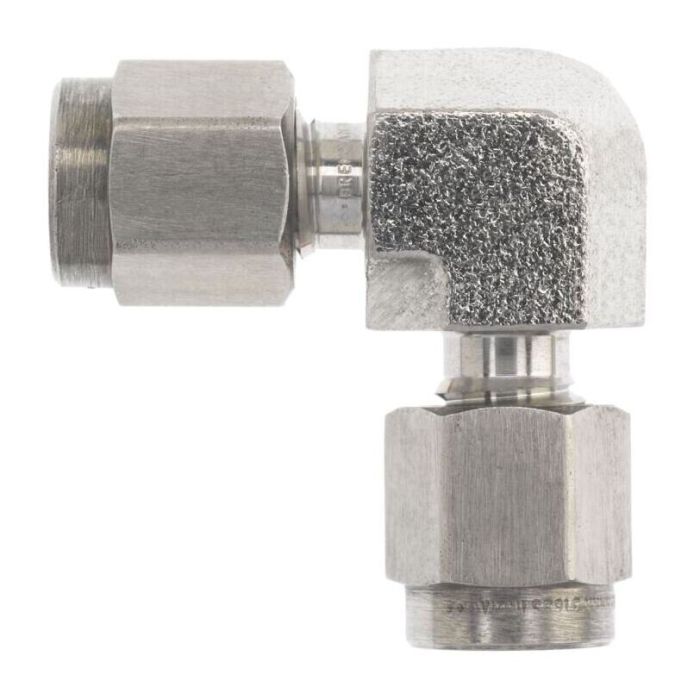

This BRENNAN 5/16 tube x tube elbow is manufactured from stainless steel and features a 90-degree angle.

It has a Brennan A measurement of 28.7mm, a C measurement of 18.5mm, a D measurement of 16.3mm, an E minimum measurement of 6.3mm, an F A F measurement of 16mm, and a G measurement of 16mm. Its Hx measurement is 21.3mm, and it adheres to the N2500 series standards.

SKU: N2500-05-05-SS

Supplier Part Number (MPN): N2500-05-05-SS

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number N2500-05-05-SS	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Billy M on Oct 16, 2025, 1:39 PM

What's the deal with that "Hx" measurement? I'm not sure what that refers to.

Answer by: Customer Support on Oct 17, 2025, 6:34 PM

The Hx measurement refers to the hexagon size, which is 21.3mm on this elbow. That dimension is important for ensuring you use the correct wrench size when installing or tightening the fitting.
