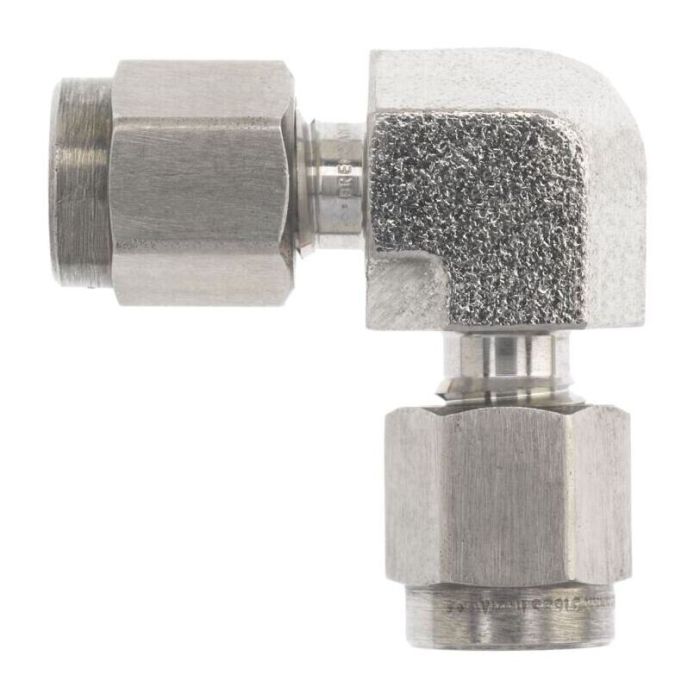

16IN-16IN 90DEG Stnls

Configured for 1-inch tube OD connections, this 90-degree stainless steel elbow fitting from Brennan Industries is designed for hydraulic and fluid conveying lines where a right-angle direction change is required. The 16IN-16IN 90DEG Stnls belongs to the Brennan N2500 series and is constructed in stainless steel, making it well suited for applications where corrosion resistance or material compatibility with aggressive media is a priority.

Key dimensional references include an A dimension of 49.0 mm, a C dimension of 26.4 mm, a D dimension of 31.2 mm, and an E minimum of 22.3 mm, with an across-flat measurement of 35 mm and a G dimension of 38 mm. The male end configuration supports straightforward integration into standard hydraulic circuit assemblies.

SKU: N2500-16-16-SS

Supplier Part Number (MPN): N2500-16-16-SS
