06IN-06FNPT90

Description & Features

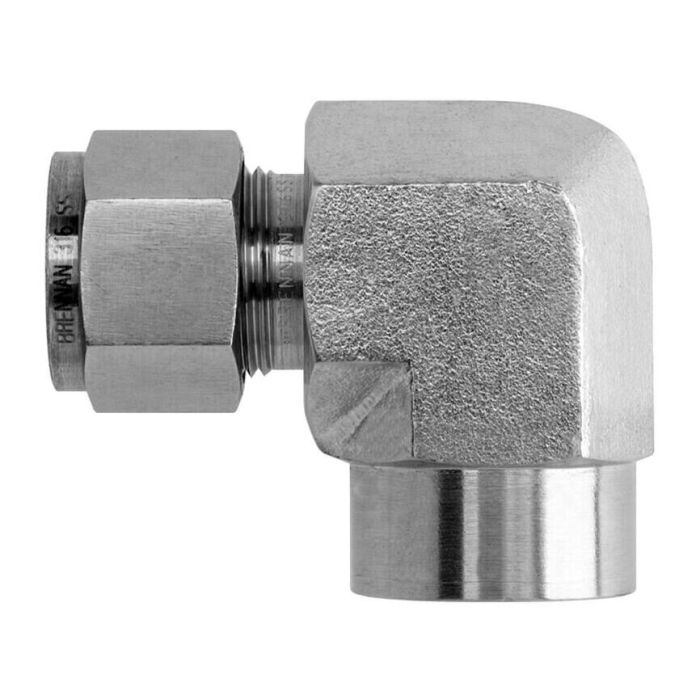

Constructed from high-quality stainless steel, the 06IN-06FNPT90 fitting is designed for robust industrial applications. This 90-degree elbow fitting features a Female NPT connection, offering versatility and reliability for hydraulic systems. With a tube outer diameter and NPT female size of 3/8 inches, it seamlessly integrates into existing setups, ensuring compatibility and ease of installation.

The fitting is part of the Brennan Industries N2502 series, synonymous with durability and precision. Its compact dimensions, including a 33.3 mm A dimension and 15.0 mm B dimension, make it suitable for tight spaces, while maintaining a secure and leak-free connection. Whether used in manufacturing or heavy machinery, this fitting ensures performance under demanding conditions.

SKU: N2502-06-06-SS

Supplier Part Number (MPN): N2502-06-06-SS

Specifications

Brand
BRENNAN
a Dimensions
33.3 mm
b Dimensions
15 mm
c Dimensions
19.3 mm
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type 1
Compression
Connection Type 2
FNPT
d Dimensions
16.8 mm
Dimensions
1.02 in L
e Min Dimensions
7.1 mm
FAF Dimensions
22 mm
Fitting Type
90 deg Elbow
gaf Dimensions
17 mm
Hex Size
0.94 in
hy Dimensions
22.4 mm
Material
Stainless Steel
Material Construction
316L Stainless Steel
Series
N2502 Series
Thread Size
9/16-20 x 3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
04IN-04FNPT 90 Stnls

N2502-04-04-SS

1/4 in

1/4 in

7/16-20, 1/4-18

06IN-04FNPT90

N2502-06-04-SS

3/8 in

1/4 in

9/16-20 x 1/4-18

12IN-12FNPT 90° Stnls

N2502-12-12-SS

3/4 in

3/4 in

1-20 x 3/4-14

Product Questions & Answers (1)

Question by: Shawn S on Feb 16, 2026, 8:45 PM
Can this elbow handle the pressures in my hydraulic system?
Answer by: Customer Support on Feb 18, 2026, 7:46 AM
This fitting, made from stainless steel, is designed for robust industrial applications. It should hold up well in demanding hydraulic setups.
