12IN-12FNPT 90° Stnls

Description & Features

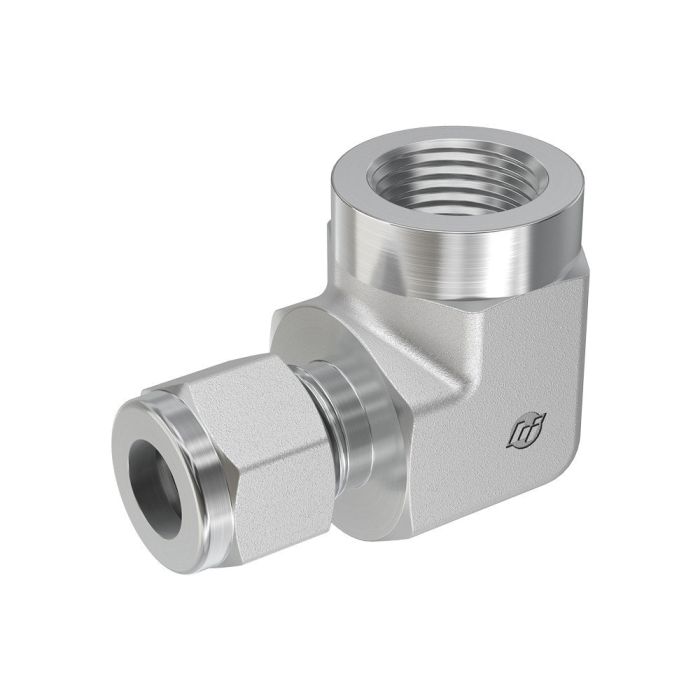

This 90° stainless steel fitting features a 12IN-12FNPT connection. The N2502 series fitting has a 3/4 inch tube OD and a 3/4 inch Brennan P NPT female connection.

Key dimensions include a Brennan A measurement of 44.7 mm, a Brennan B measurement of 20.6 mm, and a Brennan C measurement of 21.8 mm. The fitting also features a Brennan D measurement of 24.4 mm and a Brennan E minimum measurement of 15.8 mm. The Brennan F A F measures 35 mm, while the Brennan G A F measures 28.5 mm. The Brennan Hx is 34.6 mm, and the Brennan Hy is 31.8 mm.

SKU: N2502-12-12-SS

Supplier Part Number (MPN): N2502-12-12-SS

Specifications

Brand BRENNAN	a Dimensions 44.7 mm	b Dimensions 20.6 mm	c Dimensions 21.8 mm	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type 1 Compression	Connection Type 2 FNPT	d Dimensions 24.4 mm	Dimensions 1.36 in L	e Min Dimensions 15.8 mm	FAF Dimensions 35 mm	Fitting Type 90 deg Elbow	gaf Dimensions 28.5 mm	Hex Size 1-3/8 in	hy Dimensions 31.8 mm	Material Stainless Steel	Material Construction 316L Stainless Steel	Series N2502 Series	Thread Size 1-20 x 3/4-14

Product Questions & Answers (1)

Question by: Norm D on Sep 5, 2025, 9:05 PM

So this thing's stainless steel, right? Good for outdoor use, I'm hopin'.

Answer by: Customer Support on Sep 7, 2025, 9:52 AM

Being made of stainless steel, this fitting offers good corrosion resistance in many outdoor environments. Keep in mind that specific chemical exposures can still affect it.
