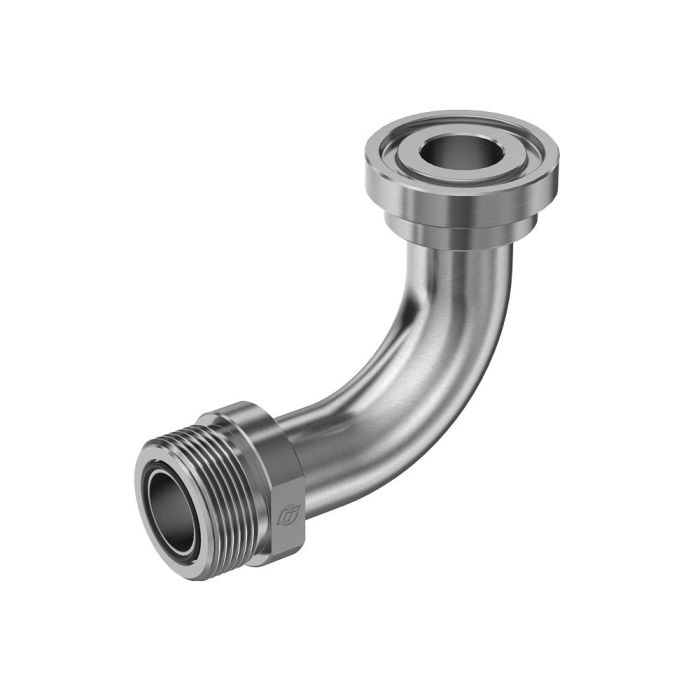

12MFS-12Flange 90 Deg Code 62 Tubed

Description & Features

A 90-degree flange elbow configured for Code 62 four-bolt flange connections, the 12MFS-12Flange 90 Deg Code 62 Tubed is designed for high-pressure hydraulic line routing where a right-angle transition is required. The tubed end accommodates direct tube connection, making it well suited for hydraulic circuit assemblies that require a compact directional change without additional fittings.

Manufactured by Brennan Industries, this fitting follows SAE Code 62 flange standards, which are commonly specified in heavy-duty mobile and industrial hydraulic systems. The 12-series sizing corresponds to a 3/4-inch nominal port, matching standard 12 flange head dimensions. This configuration is a practical choice for connecting tube lines to pumps, valves, cylinders, and manifolds where space constraints or routing requirements call for a 90-degree elbow arrangement.

SKU: NBFF6892-12-12

Supplier Part Number (MPN): FS1804-12-12

Specifications

Brand BRENNAN	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Flanged, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 SAE Code 62 Flange	Finish Zinc Trivalent	Fitting Type 90 deg Elbow	Hex Size 1.188 in	Material Steel	Material Construction Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series FS1804 Series	Thread Size 1-3/16-12

Product Questions & Answers (1)

Question by: Merle R on Apr 27, 2025, 7:54 AM

Just want to make sure, this is the kind that'll handle high pressure, right? Like for hydraulics on heavy equipment?

Answer by: Customer Support on Apr 28, 2025, 8:56 AM

It is indeed. This 90-degree flange elbow is designed for high-pressure hydraulic systems, specifically those using the SAE Code 62 four-bolt flange connection, which is common in heavy-duty mobile and industrial equipment.
