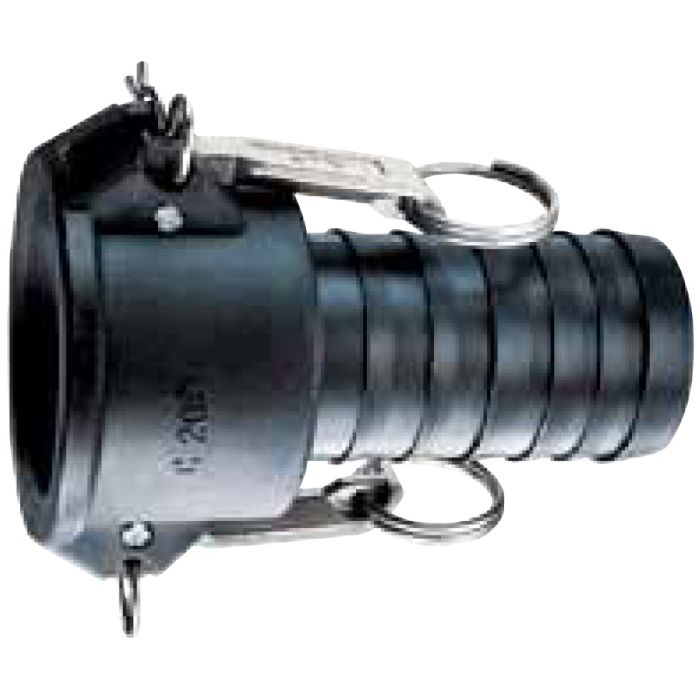

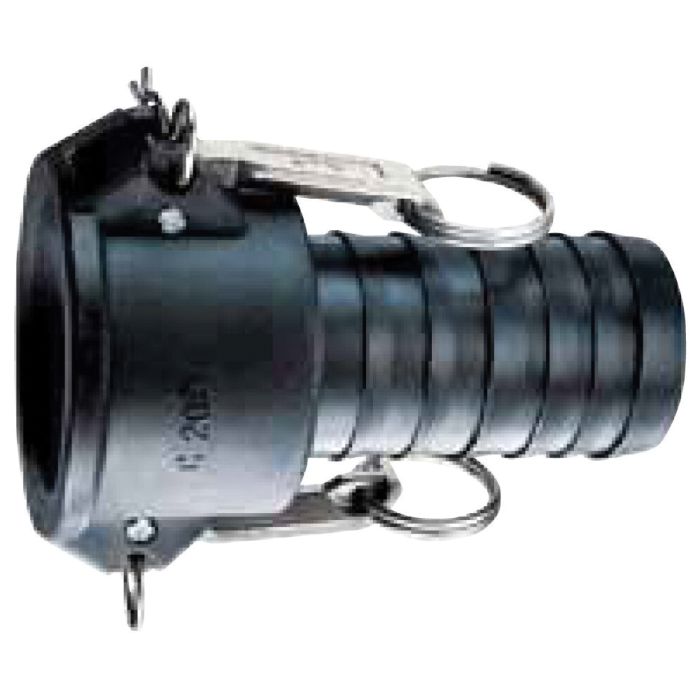

Nylon Cam & Groove Coupler, Female Half, 2 Inch Hose Shank

Description & Features

This 2 inch nylon cam and groove coupler is a female half with a hose shank, designed for use with liquids. Always consult with a specialist for specific recommendations. Note that cam and groove couplings should never be used with compressed air or steam service.

The body material is nylon with brass cam levers and plated steel pins, rings, and safety clips. Buna-N seals provide a secure connection. It interchanges with all products produced to standard A-A-59326 (superseding MIL-C-27487F) or DIN 2828. (No standard exists for 1/2” and 8” sizes. Generally these sizes do not interchange with other manufacturers.) It has a pressure rating of 150 PSI.

SKU: NYC-200

Supplier Part Number (MPN): NYC-200

Alternate Part Numbers: C1MN74

Specifications

Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Nylon	Material Construction Nylon	Seal Material Buna-N	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Product Questions & Answers (2)

Question by: Vince W on Sep 16, 2025, 7:28 AM

got a 2 inch hose, is this the female camlock end with the hose shank or am i lookin at the wrong half

Answer by: Customer Support on Sep 17, 2025, 7:03 PM

For a 2 inch hose, this is the female cam and groove coupler half with a 2 inch hose shank. It has brass cam levers, plated steel pins and rings, and a Buna-N seal.

Question by: Patty J on Feb 7, 2026, 11:48 AM

What kind of stuff can I run through this? I'm using it for a project on my farm.

Answer by: Customer Support on Feb 8, 2026, 6:56 PM

This nylon cam and groove coupler is designed for use with liquids. Just be sure to consult with a specialist for specific recommendations to be safe.
