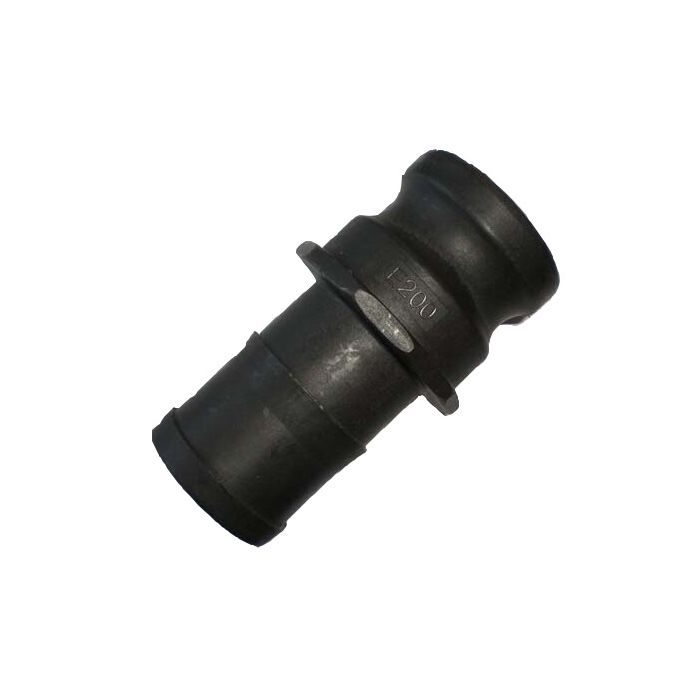

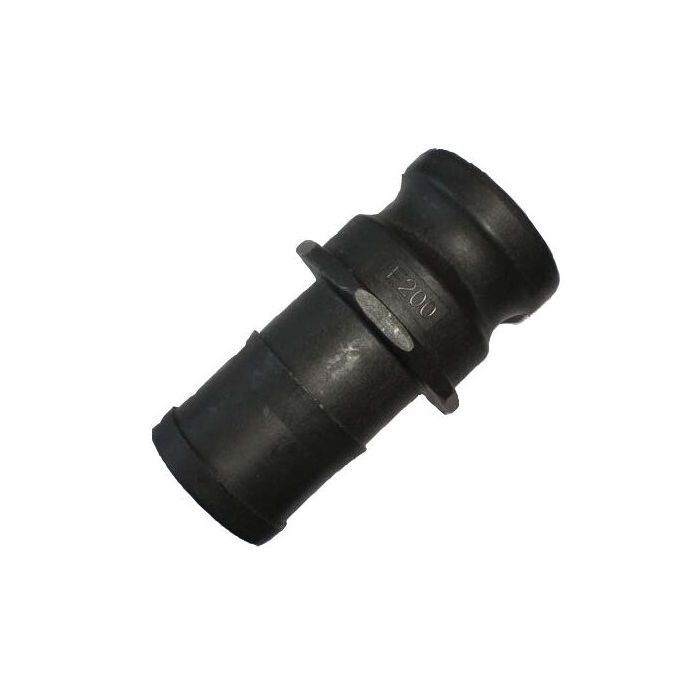

Nylon Cam & Groove Adapter, Male Half, 2 Inch Hose Shank

Description & Features

Constructed from nylon with brass cam levers and plated steel pins, rings, and safety clips, the Nylon Cam & Groove Adapter, Male Half, 2 Inch Hose Shank is a lightweight, corrosion-resistant fitting suited for liquid transfer applications in industrial environments. Buna-N seals are included as standard. The 2-inch hose shank end connects directly to compatible hose assemblies, while the cam and groove end couples and uncouples quickly by hand, no tools required.

Rated to 150 PSI for sizes up to 4 inches, this fitting is interchangeable with all products manufactured to standard A-A-59326 (superseding Mil-C-27487F) or Din 2828. Female couplers with the safety pin feature accept safety pins through cast-in lugs, preventing accidental uncoupling during use. This fitting is designed for liquid service only and is not approved for compressed air or steam.

SKU: NYE-200

Supplier Part Number (MPN): NYE-200

Alternate Part Numbers: C1MN91

Specifications

Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Male Adapter, Hose Shank	Connection Type 1 Male Adapter	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Nylon	Material Construction Nylon	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Product Questions & Answers (3)

Question by: Roy W on Jul 30, 2025, 9:41 AM

these cam and groove fittings, can you run em with compressed air or is it strictly liquid service?

Answer by: Customer Support on Jul 31, 2025, 11:53 AM

Liquid only on these. Cam and groove couplings in this style are not rated for compressed air or steam under any circumstances. That's a hard limitation across the whole product line, not just this size. For water, chemicals, or other liquid transfer applications though, the 2-inch nylon fitting works well and handles up to 150 PSI.

Question by: Joyce F on Dec 20, 2025, 6:34 PM

Is this nylon camlock safe for use with transferring things like gasoline or solvents?

Answer by: Customer Support on Dec 22, 2025, 9:41 AM

This fitting is designed specifically for liquid transfer, making it suitable for a range of applications. However, it's always best to double-check the compatibility of nylon and Buna-N seals with the specific liquid you intend to use to ensure optimal performance and safety.

Question by: Brett G on Jun 20, 2025, 9:08 AM

got a 2 inch hose, how does this thing actually hook up and come back off without tools?

Answer by: Customer Support on Jun 22, 2025, 6:43 AM

To couple it, slide the male adapter into the matching cam and groove coupler, then press the cam levers down by hand. To uncouple, lift the cam arms back up and pull the adapter out.
