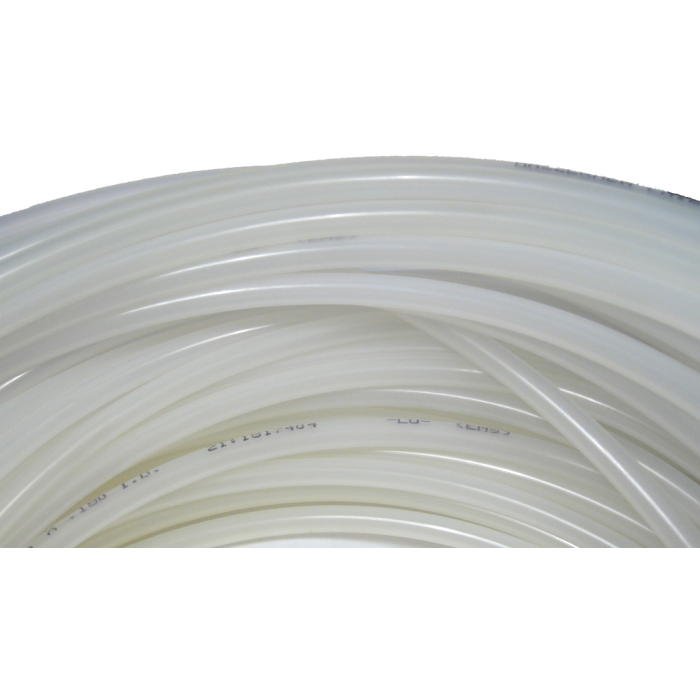

Nylon Tubing, 0.19 OD, 0.03 Thick, 0.14 ID, Up To 260.00 PSI

Description & Features

Freelin-Wade's natural nylon tubing offers remarkable versatility and durability. Capable of withstanding higher temperatures this tubing is ideal for a broad range of applications including pneumatics hydraulics vacuum systems gasses lubricants oils general chemicals machine tools coolant fuel and water systems.

It features an outer diameter of 0.19 inches a wall thickness of 0.03 inches and an inner diameter of 0.14 inches with a maximum operating pressure of up to 260 PSI. The tubing exhibits superior flexibility and smaller bend radius when compared to other nylon resins and boasts a burst pressure of 1040 PSI. Its natural color enhances visibility in various settings.

This nylon tubing has excellent corrosion resistance due to its low moisture absorption. Heat and UV stabilization properties offer resistance to stress-cracking making it suitable for use in sunny environments. Additionally it meets UL94HB testing requirements ensuring high standards in safety and performance.

The tubing has a hardness of 78 Rockwell R and a temperature range from -60deg;F to 200deg;F. Its vacuum rating is up to 28" Hg providing versatility in vacuum applications. With a minimum bend radius of 0.625 inches this nylon tubing excels in tight spaces where flexible routing is necessary.

Supplier Part Number: 1J-202-10

Specifications

Burst Pressure 1040	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 0.138 in	Maximum Operating Pressure 260	Minimum Bend Radius 0.63	Minimum Bend Radius 0.625	O.D. 0.188 in	Package Qty. 100	Supplier Part Number 1J-202-10	Wall Thickness 0.03	Alternate Part Numbers Alternate Part Number C1MM36	Product Weight 0.02 lbs

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10 Nylon Tubing	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01 Nylon Tubing	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10 Nylon Tubing	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10 Nylon Tubing	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10 Nylon Tubing	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10 Nylon Tubing	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10 Nylon Tubing	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10 Nylon Tubing	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10 Nylon Tubing	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10 Nylon Tubing	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10 Nylon Tubing	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100

Product Questions & Answers (3)

Question by: Gary E on Mar 20, 2026, 8:48 PM

What kind of temperatures can this nylon tubing handle?

Answer by: Customer Support on Mar 22, 2026, 5:13 PM

This tubing is rated for use between -60°F and 200°F.

Question by: Ralph S on Apr 18, 2025, 4:29 PM

tubing rated for fuel lines? got a small machine runs diesel and need something that won't swell up on me

Answer by: Customer Support on Apr 20, 2025, 6:30 AM

Fuel is listed among the confirmed compatible applications for this tubing, along with oils, lubricants, and general chemicals. The nylon construction resists moisture absorption and holds up well against chemical exposure, which helps prevent swelling and degradation over time. Max operating pressure is 260 PSI, so as long as your system stays within that range, you should be in good shape.

Question by: Ray H on Jul 25, 2025, 7:34 PM

got a tight spot to snake this line through, how tight can i bend it without kinking?

Answer by: Customer Support on Jul 26, 2025, 9:47 PM

For tight routing, the minimum bend radius is 0.625 inches. Staying at or above that radius helps it flex without putting a hard crease in the tubing.
