Nylon Tubing, 0.25 OD, 0.04 Thick, 0.18 ID, Up To 290.00 PSI

Description & Features

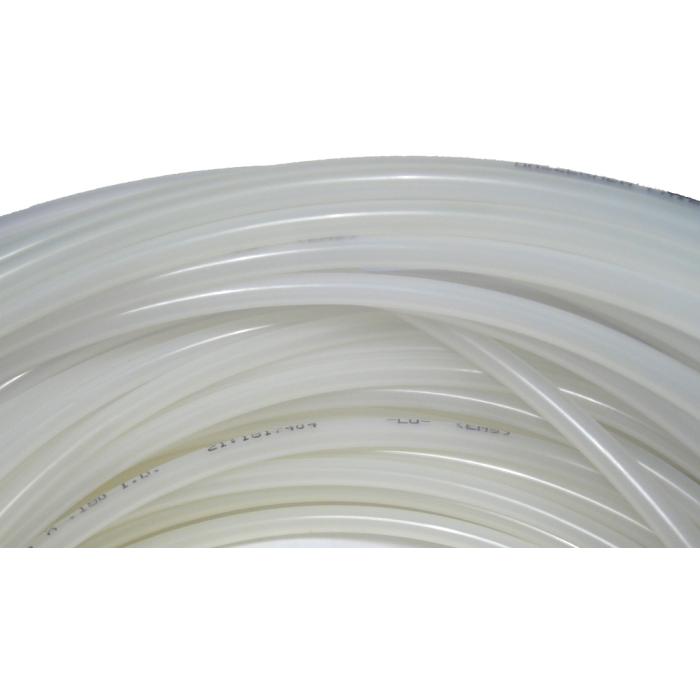

This high-quality natural nylon tubing from Freelin Wade is designed for pneumatic hydraulic and vacuum applications. With a nominal outside diameter of 0.25 inches a wall thickness of 0.04 inches and an inside diameter of 0.18 inches this tubing offers excellent flexibility and a minimum bend radius of 1 inch.

It can operate under a maximum pressure of 290 PSI and withstand burst pressures up to 1160 PSI. Ideal for use with gases lubricants oils coolants and fresh and saltwater this tubing resists corrosion and stress-cracking thanks to its heat and UV stabilization.

With a hardness of 78 Rockwell R the nylon tubing is chemical resistant and meets UL94HB testing requirements. It performs effectively across a wide temperature range from -60deg;F to 200deg;F. Its moisture-resistant properties make it suitable for various industries ensuring reliable performance in machine tool environments and fuel systems.

Supplier Part Number: 1J-204-10

MPN: C1MM38

Specifications

Burst Pressure 1160	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 0.18 in	Maximum Operating Pressure 290	Minimum Bend Radius 1	Minimum Bend Radius 1	O.D. 0.25 in	Package Qty. 100	Supplier Part Number 1J-204-10	Wall Thickness 0.04	Alternate Part Numbers Alternate Part Number C1MM38, Alternate Part Number MI-03520835, Alternate Part Number MINO-00326J63349	Product Weight 0.02 lbs

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10 Nylon Tubing	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01 Nylon Tubing	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10 Nylon Tubing	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10 Nylon Tubing	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10 Nylon Tubing	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10 Nylon Tubing	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10 Nylon Tubing	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10 Nylon Tubing	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10 Nylon Tubing	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10 Nylon Tubing	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10 Nylon Tubing	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100

Product Questions & Answers (2)

Question by: Shane H on Mar 21, 2026, 9:53 PM

got a tight little loop to make, how sharp can i bend this 1/4 nylon line before it kinks up?

Answer by: Customer Support on Mar 23, 2026, 3:56 PM

For tight routing, the minimum bend radius is 1 inch. Keeping bends at 1 inch radius or larger is the safe target to maintain flow and avoid kinking.

Question by: Rhonda P on Dec 17, 2025, 11:02 AM

tubing rated for salt water exposure? got some lines running near a wash-down area and need something that aint gonna corrode out on me

Answer by: Customer Support on Dec 19, 2025, 6:53 AM

Salt water and fresh water are both listed applications for this tubing, so wash-down environments are well within its range. The nylon resin resists moisture absorption better than a lot of other nylon materials, which is what keeps corrosion from setting in over time. UV stabilization is also built in, so if any of those lines see sunlight regularly, that's covered too.
