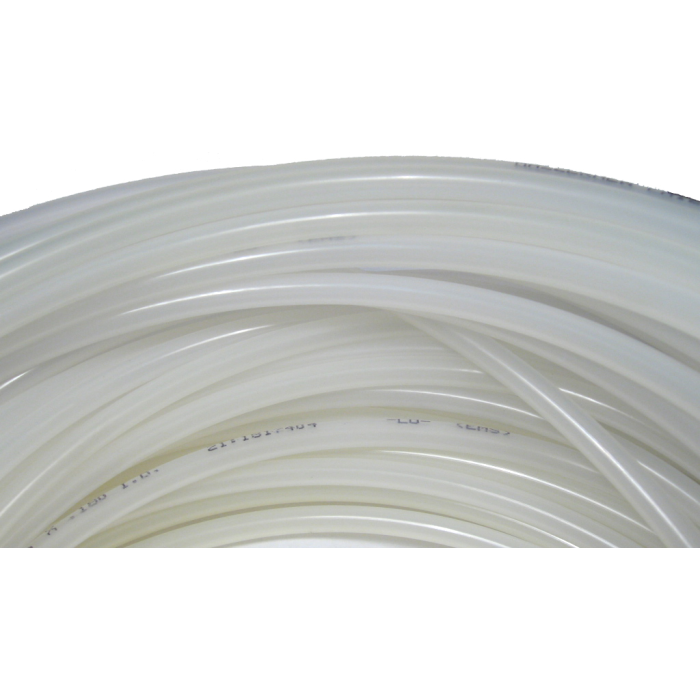

Nylon Tubing, 0.31 OD, 0.04 Thick, 0.23 ID, Up To 240.00 PSI

Description & Features

The Freelin-Wade Nylon Tubing is designed for versatility across a diverse range of applications including pneumatics hydraulics and vacuum systems. This natural-colored nylon tubing with an outer diameter of 0.31 inches and a wall thickness of 0.04 inches provides excellent flexibility and a smaller bend radius. It maintains corrosion resistance due to low moisture absorption and adds durability through its high-temperature tolerance operating efficiently between -60deg;F to 200deg;F.

With a burst pressure rating of 960 PSI and a maximum operating pressure of 240 PSI this tubing assures reliable performance under rigorous conditions. The minimum bend radius of 1.5 inches makes it adaptable in confined spaces. Engineered to meet UL94HB testing requirements it also offers chemical resistance making it suitable for areas exposed to lubricants oils and general chemicals.

The heat and UV stabilization ensure long-term reliability by reducing stress-cracking making it ideal for both indoor and outdoor usage. With a vacuum rating up to 28"Hg and a hardness level of 78 Rockwell R this tubing is built to meet industrial standards.

MPN: C1MM39

Supplier Part Number: 1J-205-10

Specifications

Burst Pressure 960	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 0.232 in	Maximum Operating Pressure 240	Minimum Bend Radius 1.50	Minimum Bend Radius 1.5	O.D. 0.312 in	Package Qty. 100	Supplier Part Number 1J-205-10	Wall Thickness 0.04	Alternate Part Numbers Alternate Part Number C1MM39	Product Weight 0.04 lbs

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10 Nylon Tubing	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01 Nylon Tubing	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10 Nylon Tubing	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10 Nylon Tubing	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10 Nylon Tubing	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10 Nylon Tubing	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10 Nylon Tubing	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10 Nylon Tubing	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10 Nylon Tubing	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10 Nylon Tubing	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10 Nylon Tubing	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100

Product Questions & Answers (3)

Question by: Neal L on Apr 20, 2025, 3:30 PM

What kind of stuff is this tubing good for resistin', like chemicals and whatnot?

Answer by: Customer Support on Apr 22, 2025, 7:04 AM

This nylon tubing shows good resistance to corrosion because it doesn't soak up moisture easily. It also handles chemicals, lubricants, and oils pretty well, so it's a solid pick for those environments.

Question by: Debbie P on Jun 24, 2025, 7:46 PM

trying to run a tight loop in a cabinet, how sharp can i bend this 5/16 nylon tube without kinkin it

Answer by: Customer Support on Jun 26, 2025, 7:42 AM

For tight routing, the minimum bend radius on this tubing is 1.5 inches. Staying at or above that bend radius helps it keep its shape and flow without collapsing.

Question by: Lance M on Feb 22, 2026, 6:15 AM

tubing rated for hydraulic use or just pneumatics? trying to figure out if 240 psi is gonna cut it for what we got running

Answer by: Customer Support on Feb 24, 2026, 6:19 AM

Hydraulic, pneumatic, and vacuum systems all fall within the rated applications for this tubing. The maximum operating pressure is 240 PSI, with a burst pressure of 960 PSI. Whether that working pressure fits your system depends on what you're running, but those are the confirmed ratings for this product.
