Nylon Tubing, 8.00 OD, 1.00 Thick, 6.00 ID, Up To 250.00 PSI

Description & Features

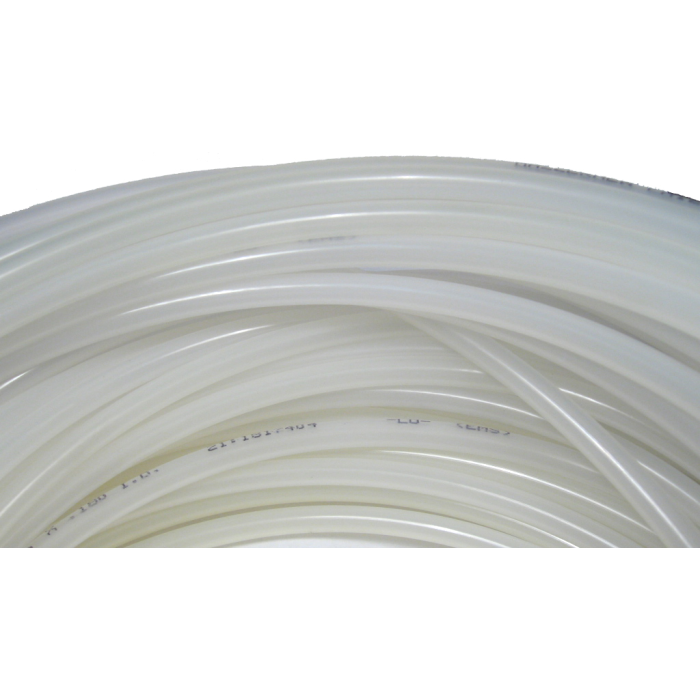

This natural-colored FreelinWade tubing is engineered to withstand higher temperatures suitable for an extensive range of applications. It holds up in pneumatic hydraulic vacuum gas lubricant oil chemical machine tool coolant fuel and both fresh and saltwater environments.

Designed with an 8mm outer diameter and a 6mm inner diameter it features a 1mm wall thickness supporting a maximum operating pressure of 250 PSI and a burst pressure of 1000 PSI. The minimum bend radius of 38mm allows for tighter installations without kinks.

The tubing excels in both heat and UV stabilization making it stress-crack resistant and ideal for outdoor applications. Its lightweight wall provides greater flexibility and a smaller bend radius than other nylon resins. Moisture absorption resistance ensures superior corrosion resistance.

Chemical resistance further extends its application scope offering durability in challenging chemical environments. The hardness of 78 Rockwell R meets UL94HB testing standards and the temperature range spans -60deg;F to 200deg;F making it versatile for various industrial uses.

MPN: C1MM43

Supplier Part Number: 1J-243-10

Specifications

Burst Pressure 1000	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 6 mm	Maximum Operating Pressure 250	Minimum Bend Radius 38	Minimum Bend Radius 38	O.D. 8 mm	Package Qty. 100	Supplier Part Number 1J-243-10	Wall Thickness 1	Alternate Part Numbers Alternate Part Number C1MM43	Product Weight 0.03 lbs

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10 Nylon Tubing	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01 Nylon Tubing	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10 Nylon Tubing	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10 Nylon Tubing	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10 Nylon Tubing	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10 Nylon Tubing	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10 Nylon Tubing	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10 Nylon Tubing	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10 Nylon Tubing	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10 Nylon Tubing	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10 Nylon Tubing	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100

Product Questions & Answers (1)

Question by: Earl T on Mar 12, 2026, 9:25 PM

tubing rated for anything other than air? got a coolant line on a machine tool setup that runs pretty warm and i need something that won't go soft on me

Answer by: Customer Support on Mar 14, 2026, 4:09 PM

Coolant lines are a solid fit for this tubing. It handles machine tool coolant along with oils, lubricants, fuel, and a range of general chemicals. The temperature ceiling is 200 degrees F, so as long as your coolant line stays under that, you won't see softening or deformation under normal operating conditions. Pressure-wise, the working limit is 250 PSI with a burst rating of 1000 PSI, which gives you a comfortable safety margin for most machine tool setups.
