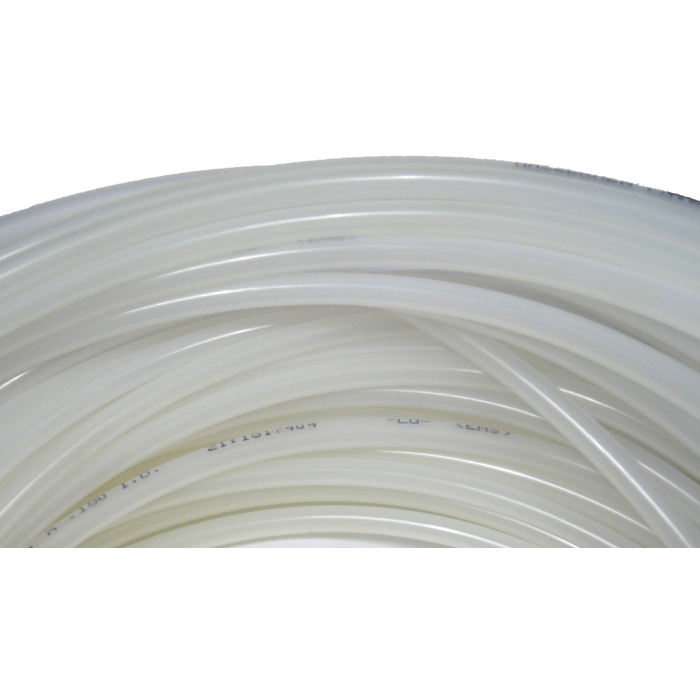

Nylon Tubing, 10.00 OD, 1.00 Thick, 8.00 ID, Up To 190.00 PSI

Description & Features

FREELINWADE Nylon tubing stands out with its ability to endure higher temperatures making it suitable for various industrial applications such as pneumatics hydraulics vacuum systems and handling gasses lubricants oils general chemicals machine tool coolant fuel and water (both fresh and salt).

Engineered with a 10 mm outer diameter 1 mm wall thickness and 8 mm inner diameter it provides optimal flexibility and a minimal bend radius of 51 mm. Additionally this nylon tubing is resistant to UV rays and stress-cracking which makes it reliable for outdoor use.

Its corrosion-resistant properties due to low moisture absorption enhance its durability while its compliance with UL94HB standards ensures safety and reliability. The material hardness is rated at 78 Rockwell R and the temperature range extends from -60deg;F to 200deg;F.

With a maximum operating pressure of 190 PSI and a burst pressure of 760 PSI this natural-colored tubing offers the robustness required for demanding environments.

Supplier Part Number: 1J-244-10

Specifications

Brand Freelin-Wade®	Color Natural	For Use With Push-In, Compression Fittings	grp Tolerance +/-0.004 to 0.005 in	Hardness 78 Rockwell R	Material Nylon	Material Construction Nylon	Nominal Size 10	Resistance Properties Corrosion

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10 Nylon Tubing	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01 Nylon Tubing	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10 Nylon Tubing	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10 Nylon Tubing	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10 Nylon Tubing	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10 Nylon Tubing	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10 Nylon Tubing	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10 Nylon Tubing	8 mm	1	6 mm	38	Natural	250	1000	100
1J-245-10 Nylon Tubing	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10 Nylon Tubing	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100

Product Questions & Answers (2)

Question by: Lee R on Sep 24, 2025, 5:44 PM

got a tight spot to route this line, how sharp can i bend that 10mm nylon tube without kinkin it

Answer by: Customer Support on Sep 26, 2025, 6:45 AM

For routing in a tight area, the minimum bend radius is 51 mm. Staying at or above that bend radius helps keep the tube from kinking while you’re making the turn.

Question by: Brett G on Jun 1, 2025, 5:23 PM

What kind of stuff can this tubing handle without breaking down? I use a bunch of different chemicals and oils.

Answer by: Customer Support on Jun 3, 2025, 11:47 AM

Freelin-Wade nylon tubing is suitable for pneumatics, hydraulics, vacuum systems, and handling gases, lubricants, oils, general chemicals, machine tool coolant, fuel, and both fresh and salt water.
