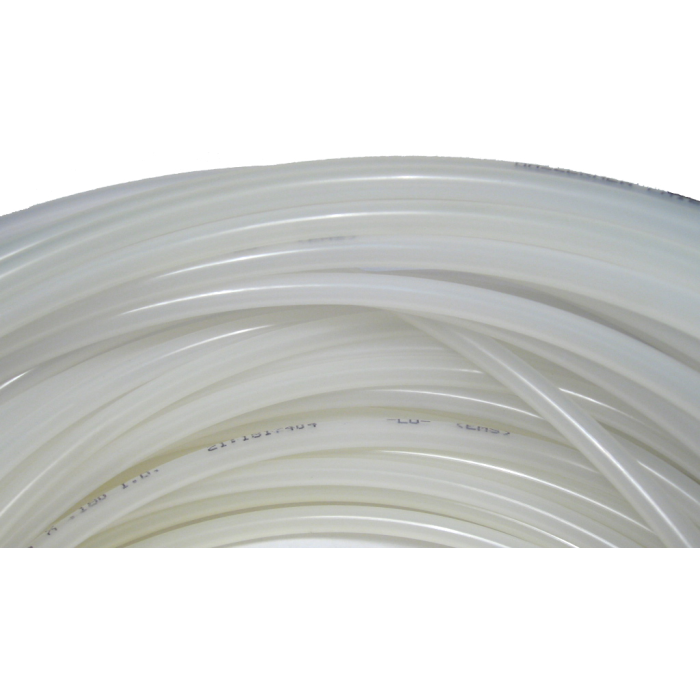

Nylon Tubing, 0.13 OD, 0.02 Thick, 0.08 ID, Up To 420.00 PSI

Description & Features

This tubing is constructed from high-quality nylon offering superior flexibility and a smaller bend radius. With a transparency that maintains a natural appearance it is resistant to corrosion due to minimal moisture absorption. Its heat and UV stabilization enhances resistance to stress-cracking making it suitable for outdoor applications.

Designed for a broad range of uses including pneumatics hydraulics vacuum systems gasses lubricants oils machine tools coolant fuel and both fresh and salt water environments. This versatility is complemented by a temperature range of -60deg;F to 200deg;F.

The nylon tubing has a 0.13 OD 0.02 wall thickness and 0.08 ID with an impressive maximum operating pressure of 420 PSI. It meets UL94HB compliance for enhanced safety and performance.

The tubing's hardness is measured at 78 Rockwell R ensuring durability and long-lasting service. Its vacuum rating reaches up to 28"Hg making it reliable under diverse conditions.

Burst Pressure: 1680 PSI

Minimum Bend Radius: 0.375 inches

MPN: 1J-247-10

Supplier Part Number: 1J-247-10

Specifications

Burst Pressure 1680	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 0.08 in	Maximum Operating Pressure 420	Minimum Bend Radius 0.38	Minimum Bend Radius 0.375	O.D. 0.125 in	Package Qty. 100	Supplier Part Number 1J-247-10	Wall Thickness 0.02	Alternate Part Numbers Alternate Part Number C1MM45	Product Weight 0.01 lbs

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10 Nylon Tubing	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01 Nylon Tubing	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10 Nylon Tubing	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10 Nylon Tubing	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10 Nylon Tubing	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10 Nylon Tubing	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10 Nylon Tubing	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10 Nylon Tubing	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10 Nylon Tubing	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10 Nylon Tubing	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10 Nylon Tubing	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100

Product Questions & Answers (1)

Question by: Phil E on Aug 22, 2025, 3:42 PM

tubing rated for salt water use? got some lines running near the coast and need something that won't corrode out on me

Answer by: Customer Support on Aug 23, 2025, 8:20 PM

Salt water is one of the listed applications for this tubing, so you're in good shape there. The nylon material resists corrosion well partly because it doesn't absorb much moisture, which is what causes a lot of other tubing types to degrade over time in wet or marine environments. The UV stabilization helps too if those lines are seeing any sun exposure.
